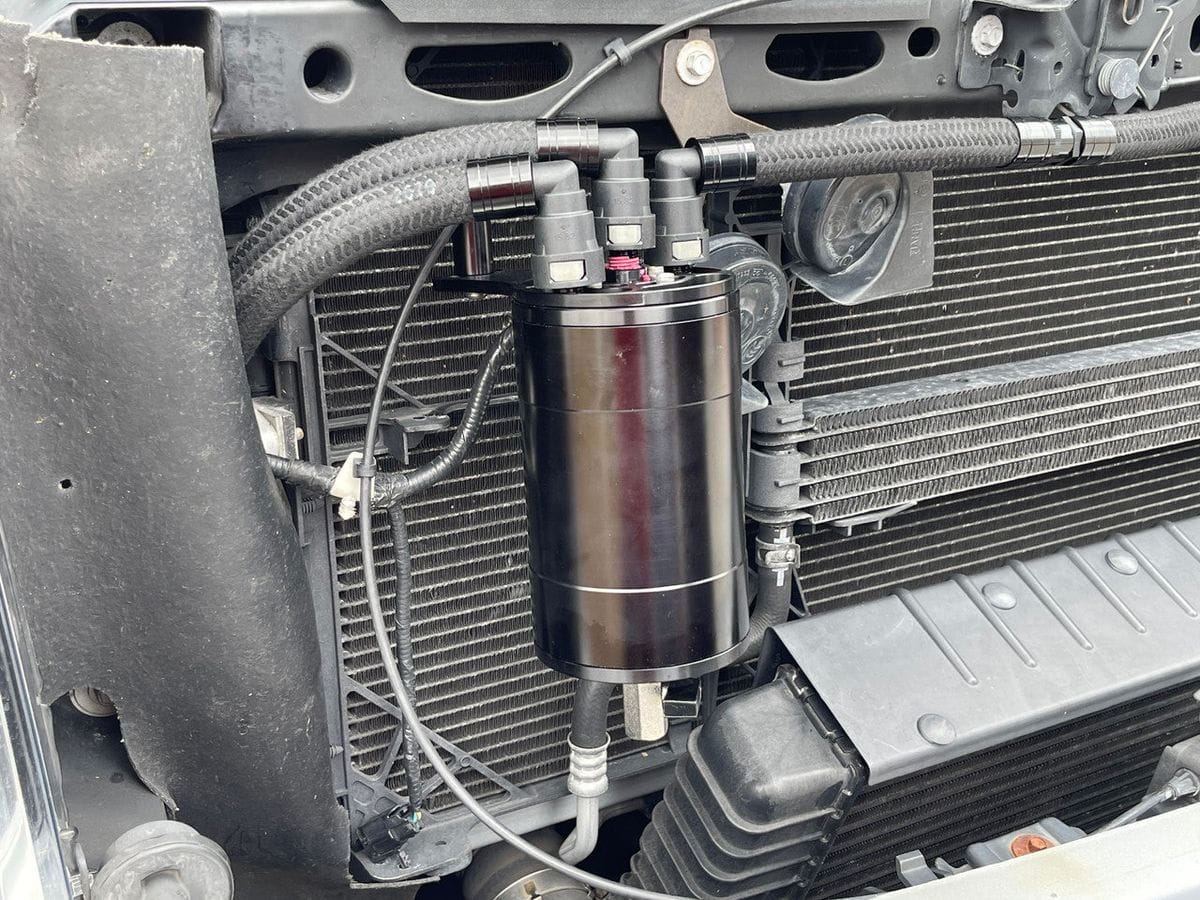

Get the ultimate oil separator for your 11-14 Ford F150 3.5 EcoBoost Truck with UPR MEGA Plug N Play™ Catch Can with clean side separator. You can be sure that no other manufacturer can give you the level of quality or performance of a UPR Pro-Series Catch Can. Offering the largest capacity in a compact design to be sure that it can eliminate oil vapors on vehicles that are normally aspirated or power added equipped. Manufactured from Domestic T-6 6061 Aluminum bar stock and finished off using only the best Diamond cutters to exceed your expectations of what a superior product should fit and look like. UPR is the largest aftermarket catch can manufacturer in the country. Continually improving our designs to stay ahead of the competition and give you the cutting edge technology of tomorrow today. We are so confident we offer an unconditional warranty on our products to let you know you can always count on UPRproducts.
Installs in 30-45 minutes
Optional Parts:
UPR Billet One-Way Valve Cover Breather:
These are Valve Cover Breathers with a one-way valve inside of it. These are designed to allow excess/positive crankcase pressure to exit through the breather when in boost. Then it closes to return to vacuum while driving to prevent un-metered air from entering to maintain perfect drivability. These are also ideal for vehicles in very cold or freezing weather as it allows crankcase pressure to escape until condensation or frozen condensation in the PCV hoses melts or thaws. This is a must to ensure maximum engine seal life.
UPR Billet Pro Series Check Valve:
The MEGA kit includes 2 standard UPR check valves installed into the vacuum and WOT hoses. The Billet Pro Series check valve is a larger, higher flowing check valve than our standard check valve. It generally will increase the vacuum through the catch can and equate to better PCV evacuation. Better evacuation can translate to better MPG and low speed drivability. Select from the drop down to upgrade and UPR will install them in the hoses when the kit is built.
UPR Adjustable Billet PCV Fitting:
The adjustable Billet PCV fitting includes 4 different size jets. It eliminates the failure prone factory PCV and still allows for the needed restriction. Jet sizes and application basics for Adjustable version are explained below.
» .100 Jet size is slightly more restrictive than the factory PCV fitting to allow you to restrict the PCV for vehicles ingesting too much oil through the PCV and wanting to reduce oil consumption.
» .125 Jet size is slightly less restrictive than the factory PCV fitting to allow you to adjust the pcv to increase flow a bit more than factory for vehicles that only need minor adjustments to eliminate vapor locking in the PCV system.
» .150 Jet size is even less restrictive for the boosted vehicles that tow and are driven harder to increase flow more than factory for vehicles that only need more adjustment to eliminate vapor locking in the PCV system.
» .175 Jet size is the least restrictive compared to the factory PCV fitting and allows for the largest adjustment of the jets for modified vehicles that generate a lot of blow-by / back pressure to eliminate vapor locking / flooding the clean side of the PCV system with oil.
SS Magnetic Drain Plug:
The Stainless Steel magnetic drain plug would replace the drain plug on the bottom of the catch can with an allen head plug that has a magnet embedded into it. It will attract any ferrous metal material to it so the user can inspect it. If you select this option you can not also use the Drain Line kit below.
Drain Line Kit:
The drain line kit includes a drain valve, hose and fittings needed to install the drain valve. It allows the user to relocate the drain somewhere easier to access like the wheel well opening or bumper area. If you select this option you can not also use the Magnetic Drain Plug.
(You would select either the Magnetic Drain Plug, or the Drain Line Kit, not both. If neither is selected, a standard drain valve will be installed)
Replacement O-Rings:
Spare O-rings for the catch can cup. If the O-ring is lost, torn or if it's just time to replace it due to wear it's a good idea to have a couple of spares in the glove box.
THIS PART DOES NOT CARRY AN CARB EO NUMBER, AND THEREFORE IS FOR RACING / OFF ROAD USE ONLY. NOT FOR SALE OR USE IN CALIFORNIA DUE TO CARB/EMISSIONS. ALL CALIFORNIA ORDERS WILL BE CANCELLED AND REFUNDED
Product Features:
» Show Quality Finish
» Can measures 7.5" x 4"
» Nickel T fittings & Drain Cock
» Prevents Oil from Entering Intake
» Exclusive 4 Chamber Design Traps Oil
» High Quality CNC Machined Billet Aluminum
» Plug N Play™ fittings at Can & Separator connections
» Improves Fuel Economy, Throttle Response & Performance
» 5/8" Oil Resistant Continental Braided Hose included
» Can measures 7.5" x 4"
» Nickel T fittings & Drain Cock
» Prevents Oil from Entering Intake
» Exclusive 4 Chamber Design Traps Oil
» High Quality CNC Machined Billet Aluminum
» Plug N Play™ fittings at Can & Separator connections
» Improves Fuel Economy, Throttle Response & Performance
» 5/8" Oil Resistant Continental Braided Hose included
Includes:
» Nickel Drain Cock
» Adjustable Mounting Bracket
» OEM 5/8" Factory Connectors
» 5/8" Continental Braided Hoses
» Billet Hose Ends with Clamps
» Hi-Flo Billet Check Valves (2 PCS)
» Plug N Play™ quick release connectors & billet fittings
» Dual Valve Billet Catch Can (Exclusive 4 Chamber Design)
» Clean Side Separator (Multi Stage Filtration) New Low Profile Design
» Adjustable Mounting Bracket
» OEM 5/8" Factory Connectors
» 5/8" Continental Braided Hoses
» Billet Hose Ends with Clamps
» Hi-Flo Billet Check Valves (2 PCS)
» Plug N Play™ quick release connectors & billet fittings
» Dual Valve Billet Catch Can (Exclusive 4 Chamber Design)
» Clean Side Separator (Multi Stage Filtration) New Low Profile Design
Fits These Vehicles:
2011 2012 2013 2014 Ford F150 EcoBoost 3.5
Made in the USA!
Q & A
Question: What is the problem with your PCV system ?
Answer: The Positive Crankcase Ventilation (PCV) system is used to recycle the gases that leak or "blow-by" the your engines piston rings and create a positive pressure in the crankcase. By venting these gases along with oil mist/vapor from the crankcase and route it back into the intake manifold so it can be burned off.
This is a poor fix from automobile manufacturers, because over time the excess oil vapor collects along the inside of the intake tract and forms a "sludge". This leads to a variety of issues including carbon build up, retarded timing, detonation, power loss and even engine failure.
UPR s fix for the PCV system used on many engines for reducing toxic gases from being released into the atmosphere and eliminating positive crankcase pressure / Blow-By.
Question: What does a UPR Catch Can do ?
Answer: UPR s Billet Catch Can / oil-air separator will condense and collect the oil vapor before it has any chance to reach the intake tract. As the gas and oil vapor enters UPR s can they pass through a Chambered filtering system that cools the oil vapor and gives it something to adhere to.
Then the oil forms into droplets and collect in the bottom of the UPR Catch Can so that they can later be drained. This is where the additional Chambered filtering system comes into play allowing only the clean air to pass through so it can eliminate unwanted blow by.
All engines have blow by otherwise there would be no need for a PCV system on your engine. PCV = Positive Crankcase Valve, which eliminates Positive Crankcase Pressure. UPR s Catch Can has become one of the most widely used and recommended cures for just about every application.
Answer: The Positive Crankcase Ventilation (PCV) system is used to recycle the gases that leak or "blow-by" the your engines piston rings and create a positive pressure in the crankcase. By venting these gases along with oil mist/vapor from the crankcase and route it back into the intake manifold so it can be burned off.
This is a poor fix from automobile manufacturers, because over time the excess oil vapor collects along the inside of the intake tract and forms a "sludge". This leads to a variety of issues including carbon build up, retarded timing, detonation, power loss and even engine failure.
UPR s fix for the PCV system used on many engines for reducing toxic gases from being released into the atmosphere and eliminating positive crankcase pressure / Blow-By.
Question: What does a UPR Catch Can do ?
Answer: UPR s Billet Catch Can / oil-air separator will condense and collect the oil vapor before it has any chance to reach the intake tract. As the gas and oil vapor enters UPR s can they pass through a Chambered filtering system that cools the oil vapor and gives it something to adhere to.
Then the oil forms into droplets and collect in the bottom of the UPR Catch Can so that they can later be drained. This is where the additional Chambered filtering system comes into play allowing only the clean air to pass through so it can eliminate unwanted blow by.
All engines have blow by otherwise there would be no need for a PCV system on your engine. PCV = Positive Crankcase Valve, which eliminates Positive Crankcase Pressure. UPR s Catch Can has become one of the most widely used and recommended cures for just about every application.
