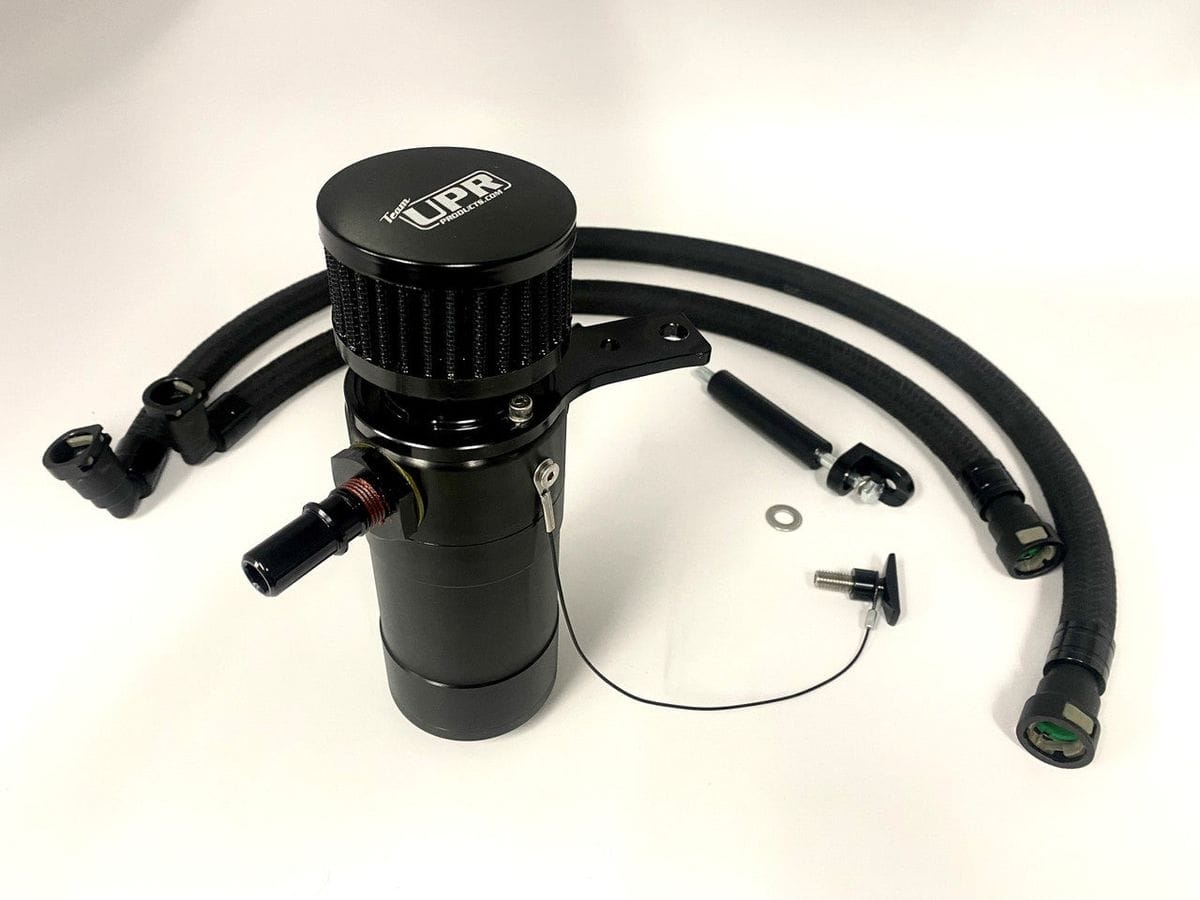

NEW UPR Plug N Play™ Breather Tank kit for your 2015 and newer 5.0L F150. This Vent to Atmosphere Breather Tank system is perfect for racing or super high performance builds where eliminating the PCV connection to the intake manifold is needed. This kit easily mounts to the radiator support and can be modified to fit other locations in the engine compartment if needed. (This does not fit with the stock style air box)
The new UPR Clock able Bracket design allows the Breather Tank to be mounted in many positions.
Designed to provide the best oil control without any questions. 100% CNC machined Oil Separator System provides the most sure fire way to eliminate any chances of oil getting into your intercooler and intake tract since there is no connection to intake vacuum or air inlet tubes. Ideal for racing and high performance trucks or if you are running a Vortech, Paxton, Procharger, or Turbo kit with inlet screens only.
From the exact fit UPR Braided lines, Exclusive UPR Plug N Play™ fittings and UPR Quick Release Billet mounting bracket system. Giving you everything needed to protect your engine from any unwanted Blow-by. UPR Breather tanks are easy to drain with an optional petcock or you can unscrew the containment cup to drain, inspect and clean the contents out. You can't do that with those over priced welded up breather tanks! The Breather tank and filter is easily cleaned with warm water and mild detergent like dish soap.
The new UPR Clock able Bracket design allows the Breather Tank to be mounted in many positions.
Designed to provide the best oil control without any questions. 100% CNC machined Oil Separator System provides the most sure fire way to eliminate any chances of oil getting into your intercooler and intake tract since there is no connection to intake vacuum or air inlet tubes. Ideal for racing and high performance trucks or if you are running a Vortech, Paxton, Procharger, or Turbo kit with inlet screens only.
From the exact fit UPR Braided lines, Exclusive UPR Plug N Play™ fittings and UPR Quick Release Billet mounting bracket system. Giving you everything needed to protect your engine from any unwanted Blow-by. UPR Breather tanks are easy to drain with an optional petcock or you can unscrew the containment cup to drain, inspect and clean the contents out. You can't do that with those over priced welded up breather tanks! The Breather tank and filter is easily cleaned with warm water and mild detergent like dish soap.
Vent to Atmosphere breather tanks are for Racing / Off Road use only and do not comply with any emissions regulations. If you are sensitive to odors, this may not be for you since crankcase fumes will be vented from the filter on the breather tank.
Installs in 30 minutes.
Depending on your power adder, air filter location or other obstacles this kit may require some modifications to fit.
This UPR Pro Series catch can kit is shipped ready to install even if no upgrades are selected. Upgrades are available to allow you to tailor the kit to fit your needs. Optional Parts:
UPR Adjustable Billet PCV Fitting:
The adjustable Billet PCV fitting includes 4 different size jets. It eliminates the failure prone factory PCV and still allows for the needed restriction. Jet sizes and application basics for Adjustable version are explained below.
» .100 Jet size is slightly more restrictive than the factory PCV fitting to allow you to restrict the PCV for vehicles ingesting too much oil through the PCV and wanting to reduce oil consumption.
» .125 Jet size is slightly less restrictive than the factory PCV fitting to allow you to adjust the pcv to increase flow a bit more than factory for vehicles that only need minor adjustments to eliminate vapor locking in the PCV system.
» .150 Jet size is even less restrictive for the boosted vehicles that tow and are driven harder to increase flow more than factory for vehicles that only need more adjustment to eliminate vapor locking in the PCV system.
» .175 Jet size is the least restrictive compared to the factory PCV fitting and allows for the largest adjustment of the jets for modified vehicles that generate a lot of blow-by / back pressure to eliminate vapor locking / flooding the clean side of the PCV system with oil.
Replacement Breather Filter:
Spare filter is a good thing to keep on hand. If original filter gets dirty and needs to be clean it can be swapped out and then cleaned at your convenience.
Replacement O-Rings:
Spare O-rings for the breather cup. If the O-ring is lost, torn or if it's just time to replace it due to wear it's a good idea to have a couple of spares in the glove box.
Drain Line Kit:
The drain line kit includes a drain valve, hose and fittings needed to install the drain valve. It allows the user to relocate the drain somewhere easier to access like the wheel well opening or bumper area. If you select this option you can not also use the Magnetic Drain Plug.
THIS PART DOES NOT CARRY AN CARB EO NUMBER, AND THEREFORE IS FOR RACING / OFF ROAD USE ONLY. NOT FOR SALE IN CALIFORNIA DUE TO CARB/EMISSIONS. ALL CALIFORNIA ORDERS WILL BE CANCELLED AND REFUNDED
Product Features:
» Show Quality Finish» Easy 15 Minute Install
» Can measures 3" x 6"
» High Quality CNC Machined Billet Aluminum
» Vents oil vapor/crankcase pressure to atmosphere
» 5/8" Oil Resistant Continental Braided Hose included
» Improves Fuel Economy, Throttle Response & Performance
» Can measures 3" x 6"
» High Quality CNC Machined Billet Aluminum
» Vents oil vapor/crankcase pressure to atmosphere
» 5/8" Oil Resistant Continental Braided Hose included
» Improves Fuel Economy, Throttle Response & Performance
» Designed to be a complete Plug N Play ™ System for the F150 5.0
» Available in Satin Silver or Black - Select Above
» Available in Satin Silver or Black - Select Above
Fits These Vehicles:
2015 2016 2017 2018 2019 2020 Ford F-150 5.0 V8 Coyote
Made in the USA!
