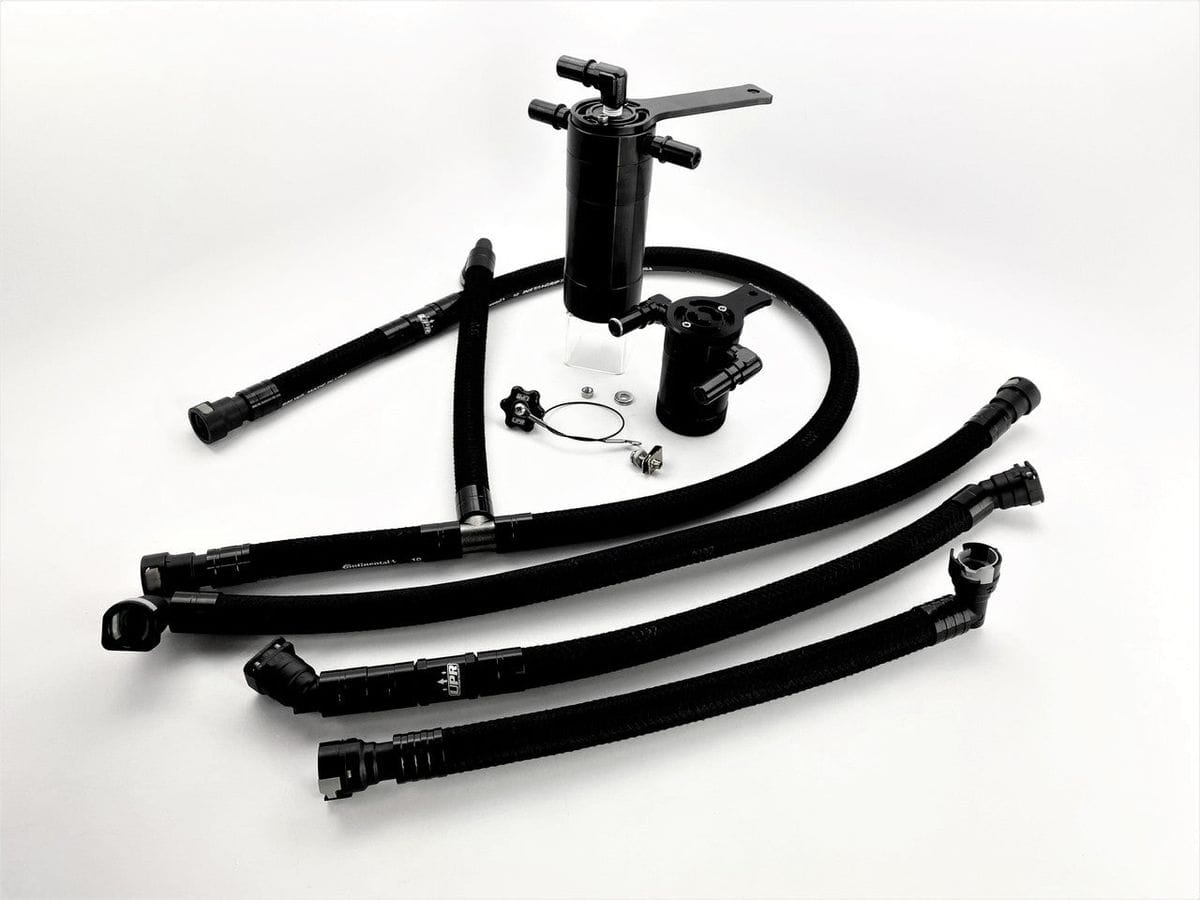

The NEW 2024 S650 Ford Mustang 2.3L EcoBoost dual valve kit with adjustable mounting bracket is the perfect fit for your engine bay. With it's extremely efficient compact design and Incredible Looks. We went the extra mile to ensure you get the best quality components. The Dual Valve catch can will not only separate oil mist and combustion byproducts during low speed driving and idle (when there is manifold vacuum present), it will also allow circulation and crankcase evacuation when under BOOST. When under boost, the Wide Open Throttle hose will utilize the high velocity air being pulled into the turbo through the turbo inlet tube to increase air being pulled through the catch can . The advantage is crankcase evacuation throughout the RPM range! If you drive your Mustang hard, this is the perfect catch can kit for your Performance Driven stock, or modified EcoBoost Mustang.
This is a No Drill install! Easy to service with UPR's Billet bracket technology and Plug N Play ™ quick release factory style fittings. You can remove this kit to return the vehicle back to stock if needed.
Utilizing Continental Braided Hose and Billet Hose Ends to give you the Strongest and Best Performing Setup Possible. No cheap stock lines here that have been cut and spliced on! Featuring the New UPR Plug N Play™ Catch Can Fittings, simply push the grey buttons on the fitting to release it. This allows you to remove and empty the catch can without removing the catch can lines from your engine. (UPR Exclusive Push Button Fittings) No tools needed to service the catch can.
We have hundreds of hours testing our new 4 Stage Oil Separator to ensure the claims and results will exceed your expectations. We even double the size of the oil containment chamber. The design of this unit is more along the lines of a True Engineer and cannot be compared or confused with units that have side by inlets and outlets with screen rolled up and shoved in them. The 4 chamber technology in UPR catch cans captures and filters all the oil vapor and trash from getting into your air intake tract. That's the most important reason for a catch can in the first place! Manufactured from Domestic T-6 6061 Aluminum bar stock and finished off using only the best Diamond cutters to exceed your expectations of what a superior product should fit and look like. UPR is the largest aftermarket catch can manufacturer in the country. Continually improving our designs to stay ahead of the competition and give you the cutting edge technology of tomorrow today. We are so confident we offer an unconditional warranty on our products to let you know you can always count on UPRproducts.
UPR Clean Side Catch Can (CSCC):
This kit also has the option to add the CSCC for the Driver side of the PCV system. The CSCC makes sure you are fully protected at both ends of the PCV system. (Great protection and ideal for all driving situations) Manufactured from Domestic T-6 6061 Aluminum bar stock and finished off using only the best Diamond cutters to exceed your expectations of what a superior product should fit and look like.
We have hundreds of hours testing our new 4 Stage Oil Separator to ensure the claims and results will exceed your expectations. We even double the size of the oil containment chamber. The design of this unit is more along the lines of a True Engineer and cannot be compared or confused with units that have side by inlets and outlets with screen rolled up and shoved in them. The 4 chamber technology in UPR catch cans captures and filters all the oil vapor and trash from getting into your air intake tract. That's the most important reason for a catch can in the first place! Manufactured from Domestic T-6 6061 Aluminum bar stock and finished off using only the best Diamond cutters to exceed your expectations of what a superior product should fit and look like. UPR is the largest aftermarket catch can manufacturer in the country. Continually improving our designs to stay ahead of the competition and give you the cutting edge technology of tomorrow today. We are so confident we offer an unconditional warranty on our products to let you know you can always count on UPRproducts.
UPR Clean Side Catch Can (CSCC):
This kit also has the option to add the CSCC for the Driver side of the PCV system. The CSCC makes sure you are fully protected at both ends of the PCV system. (Great protection and ideal for all driving situations) Manufactured from Domestic T-6 6061 Aluminum bar stock and finished off using only the best Diamond cutters to exceed your expectations of what a superior product should fit and look like.
Installs in 20 minutes.
This UPR Pro Series catch can kit is shipped ready to install even if no upgrades are selected. Upgrades are available to allow you to tailor the kit to fit your needs.
Optional Parts:
UPR Billet Pro Series Check Valves:
These are larger higher flowing check valves than the standard check valve. It will increase the vacuum through the catch can and deliver better crankcase evacuation. The improved crankcase evacuation translates to increased MPG and more responsive low speed drivability. The arrow printed on the check valve will always need to face away from the catch can. There is no down side to having a check valve in a Naturally Aspirated (NA) application, and a check valve in required in boosted applications. The larger, higher flowing Pro Series Check Valve also has a hex nut on the body so you can disassemble it for inspection and cleaning.
SS Magnetic Drain Plug:
The Stainless Steel magnetic drain plug would replace the drain plug on the bottom of the catch can with an allen head plug that has a magnet embedded into it. It will attract any ferrous metal material to it so the user can inspect it. If you select this option you can not also use the Drain Line kit below.
Drain Line Kit:
The drain line kit includes a drain valve, hose and fittings needed to install the drain valve. It allows the user to relocate the drain somewhere easier to access like the wheel well opening or bumper area. If you select this option you can not also use the Magnetic Drain Plug.
Choose either the stainless steel magnetic drain plug or the UPR drain line kit, you would not need both.
Replacement O-Rings:
Spare O-rings for the catch can cup. If the O-ring is lost, torn or if it's just time to replace it due to wear it's a good idea to have a couple of spares in the glove box. 5030 is the main dirty side catch can and 5049 is the clean side catch can.
THIS PART DOES NOT CARRY A CARB EO NUMBER, AND THEREFORE IS FOR RACING / OFF ROAD USE ONLY. NOT FOR SALE OR USE IN CALIFORNIA DUE TO CARB/EMISSIONS. ALL CALIFORNIA ORDERS WILL BE CANCELLED AND REFUNDED
This UPR Pro Series catch can kit is shipped ready to install even if no upgrades are selected. Upgrades are available to allow you to tailor the kit to fit your needs.
Optional Parts:
UPR Billet Pro Series Check Valves:
These are larger higher flowing check valves than the standard check valve. It will increase the vacuum through the catch can and deliver better crankcase evacuation. The improved crankcase evacuation translates to increased MPG and more responsive low speed drivability. The arrow printed on the check valve will always need to face away from the catch can. There is no down side to having a check valve in a Naturally Aspirated (NA) application, and a check valve in required in boosted applications. The larger, higher flowing Pro Series Check Valve also has a hex nut on the body so you can disassemble it for inspection and cleaning.
SS Magnetic Drain Plug:
The Stainless Steel magnetic drain plug would replace the drain plug on the bottom of the catch can with an allen head plug that has a magnet embedded into it. It will attract any ferrous metal material to it so the user can inspect it. If you select this option you can not also use the Drain Line kit below.
Drain Line Kit:
The drain line kit includes a drain valve, hose and fittings needed to install the drain valve. It allows the user to relocate the drain somewhere easier to access like the wheel well opening or bumper area. If you select this option you can not also use the Magnetic Drain Plug.
Choose either the stainless steel magnetic drain plug or the UPR drain line kit, you would not need both.
Replacement O-Rings:
Spare O-rings for the catch can cup. If the O-ring is lost, torn or if it's just time to replace it due to wear it's a good idea to have a couple of spares in the glove box. 5030 is the main dirty side catch can and 5049 is the clean side catch can.
THIS PART DOES NOT CARRY A CARB EO NUMBER, AND THEREFORE IS FOR RACING / OFF ROAD USE ONLY. NOT FOR SALE OR USE IN CALIFORNIA DUE TO CARB/EMISSIONS. ALL CALIFORNIA ORDERS WILL BE CANCELLED AND REFUNDED
Product Features:
» Show Quality Finish
» UPR Plug N Play™ fittings
» Includes Clean Side Catch Can
» Prevents Oil from Entering Intake
» Exclusive 4 Stage Design Traps Oil
» Innovative Diffuser Tube and Chamber
» Prevents Oil from Entering Intake
» Exclusive 4 Stage Design Traps Oil
» Innovative Diffuser Tube and Chamber
» Catch Can Measures 2.5 x 6" 8oz Capacity
» Clean Side Catch Can Can measures 2.25 x 3.5" 4oz Capacity
» High Quality CNC Machined Billet Aluminum
» 5/8" Oil Resistant Continental Braided Hose included
» Improves Fuel Economy, Throttle Response & Performance
» Black Anodized Finish
» High Quality CNC Machined Billet Aluminum
» 5/8" Oil Resistant Continental Braided Hose included
» Improves Fuel Economy, Throttle Response & Performance
» Black Anodized Finish
Fits These Vehicles:
2024 Ford Mustang 2.3L EcoBoost
Made in the USA!
