The 2500HD AT4X and ZR2 already comes 'leveled' from the factory via torsion bar and torsion key clocking. These models are coming the same size in the front as our 3" leveling kit on the other models. Of course you have already noticed that the truck is not level, and that is due to GM adding a 1.5" tall lift block to the rear. The OEM upper control arms, knuckles, and lower control arms are all new and specifically designed for this model. THe OEM upper arm has a modified ball joint angle and is slightly longer in order to operate at this taller ride height. This model stock has tie rod angles are no longer flat with the centerlink and therefore GM has sent you down the road with a design that is prone to wearing the pitman and idler arms prematurely. The patented Cognito Pitman and Idler Arm Support kit is included in this package and will fix the flaw in the GM front steering system which will prevent premature pitman arm, idler arm, and front tire wear.

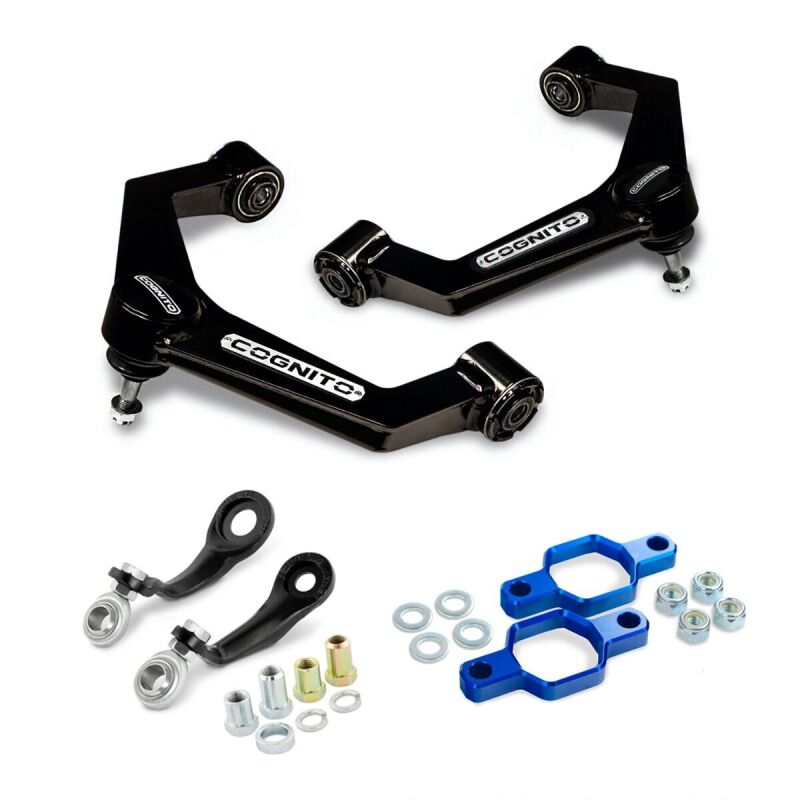

- Cognito Pitman and Idler Arm Support Kit
- Cognito SM Series Upper Control Arm Kit
- Cognito Extenders for DSSV Front Shocks
- Maintenance Free Pivot Bushings
- Powder Coated Semi Gloss Black
- Maintenance Free Ball Joints
- 3-Hour DIY Install Time
- Added Casters
