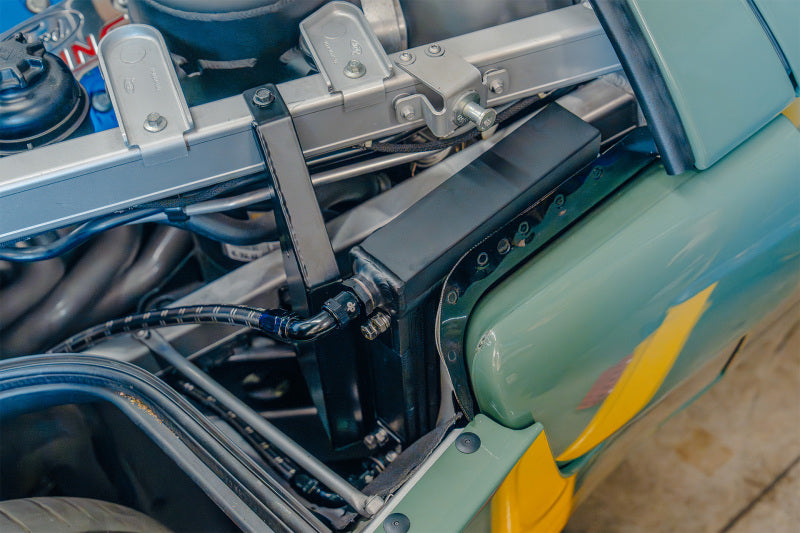

CSF oil coolers are much more robust, durable, and can withstand a higher peak burst rate than common brazed plate-type/stacked designs. This allows the cooler to be mounted in areas that might get high debris (front fascia, diff cooler, side vents, etc). When using a conventional oil cooler, the type of mounting locations are often not considered due to the risk of damage. The CSF oil cooler is designed to withstand a tremendous amount of vibration and debris. You can even stand on it!

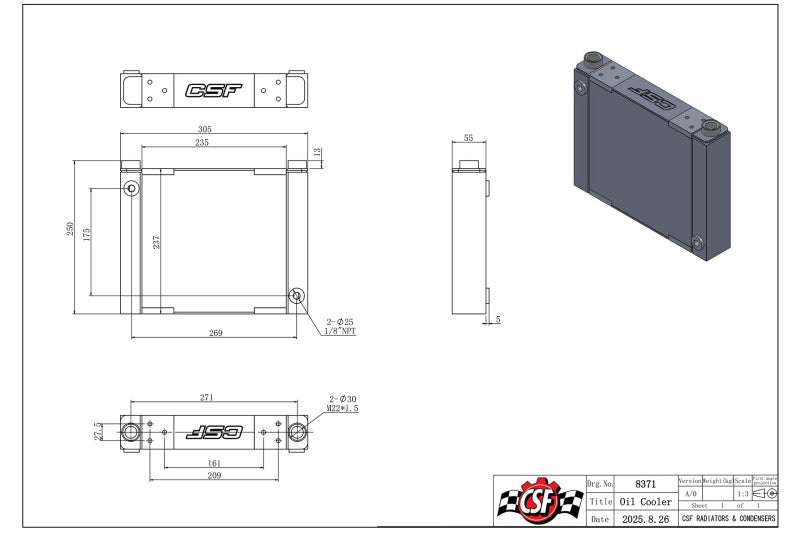

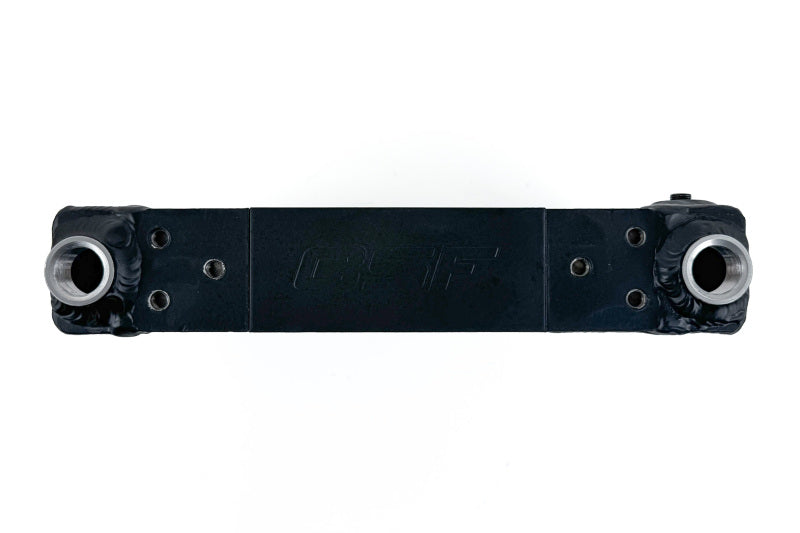

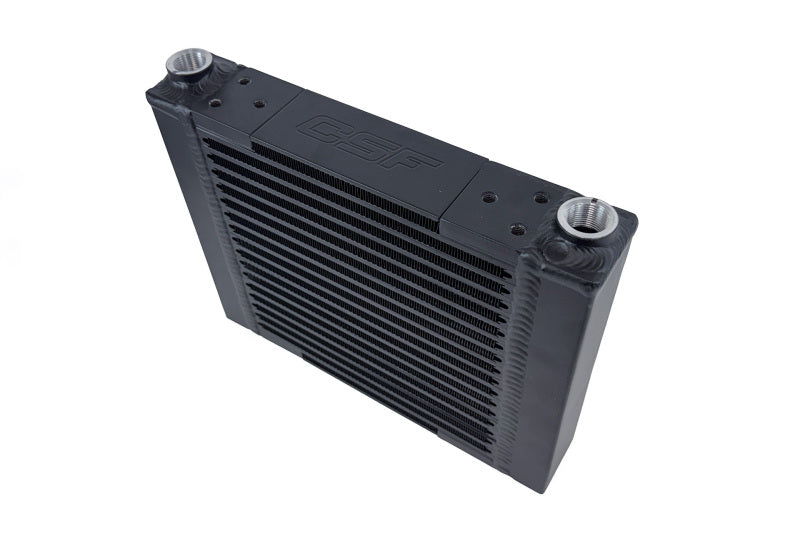

- Overall Dimensions (including fitting bosses): 12.0" L x 9.85" H x 2.36" W (305mm x 250mm x 60mm)
- Satin Black Finish for Extreme Protection Against Corrosion and Debris
- Core Dimensions: 9.25" L x 9.33" H x 2.16" W (235mm x 237mm x 55mm)

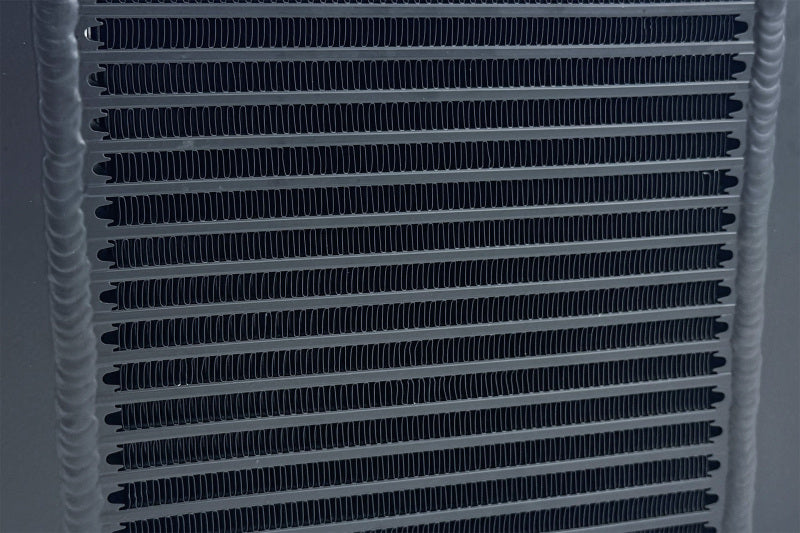

- "Aero-Flow" Bar Design for Lightweight, Strength, and Maximum Flow

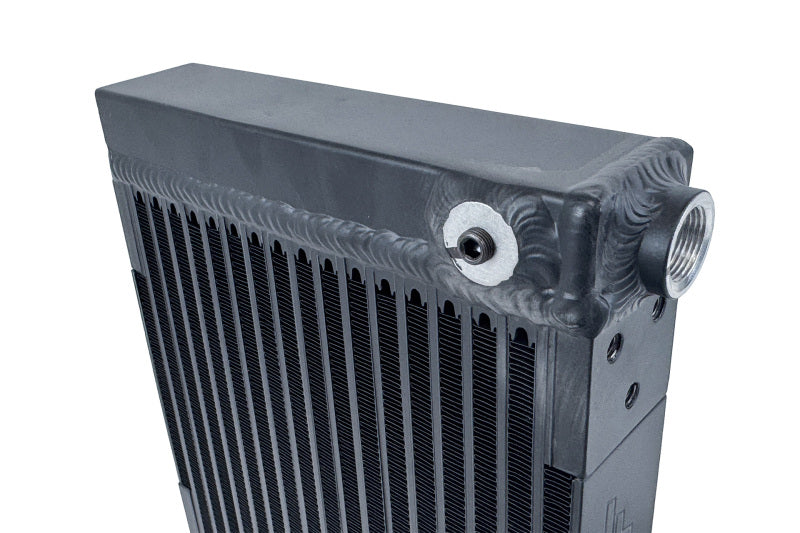

- Two 1/8 NPT Ports on each tank for bleeding or temperature sensors
- High Efficiency & Rugged Durability Bar/Plate Design

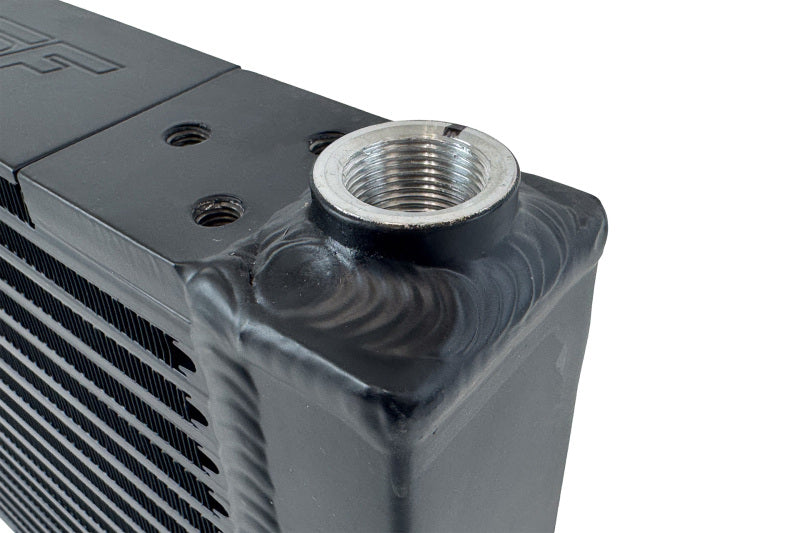

- M22 x 1.5 Inlet/Outlet Connections
- Fluid Capacity: 1.5L (1.6 qt)
- Pressure Tested at 120psi
- 2-Year Limited Warranty
