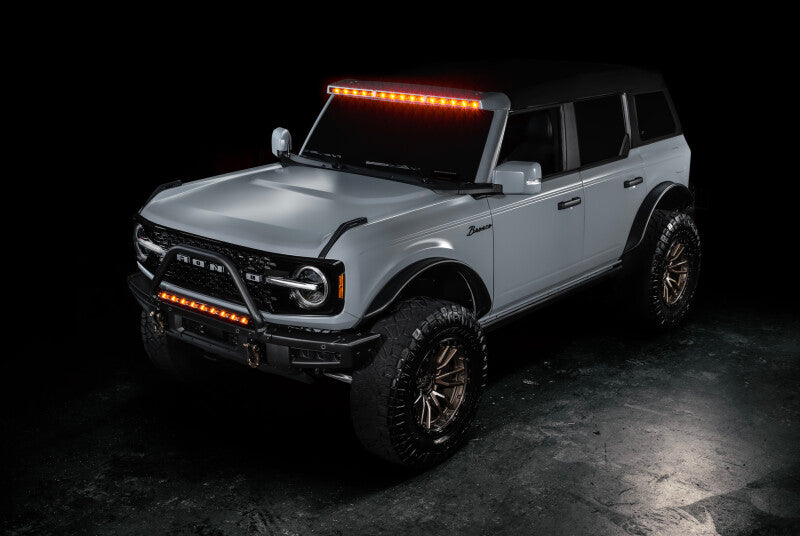

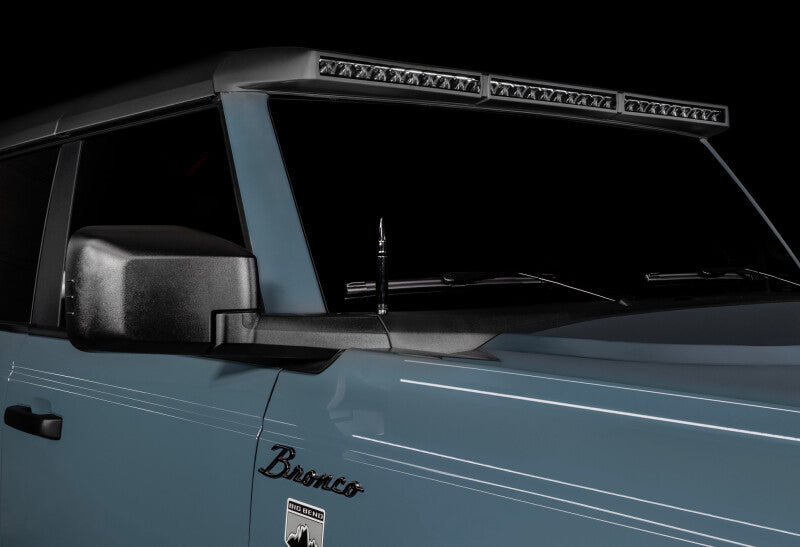

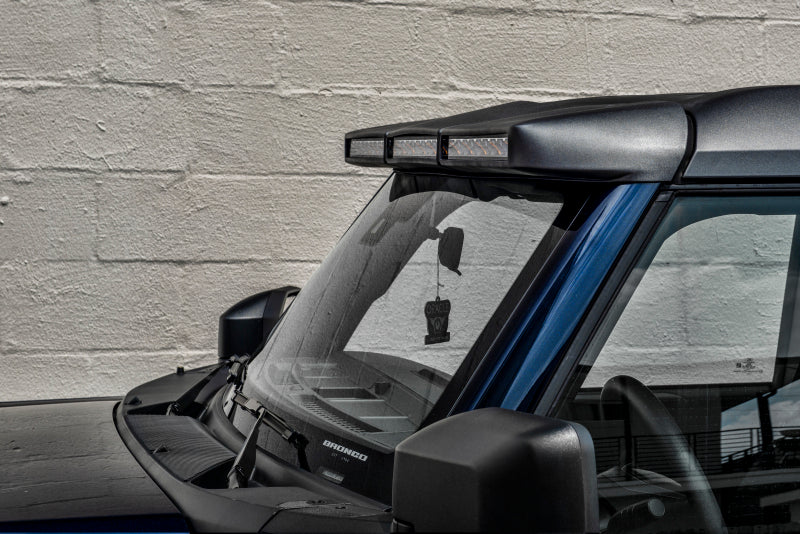

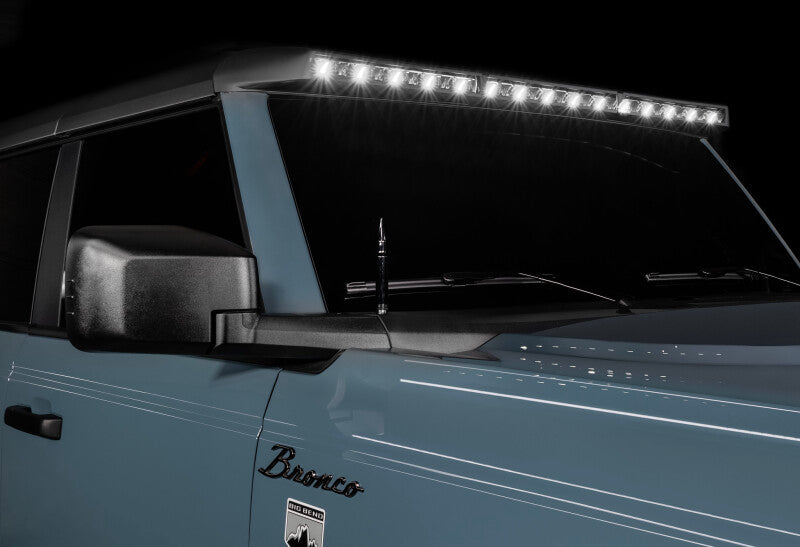

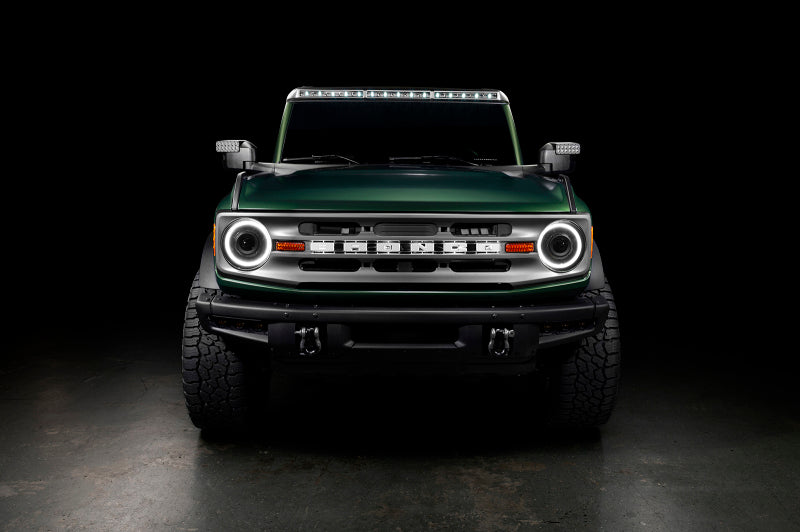

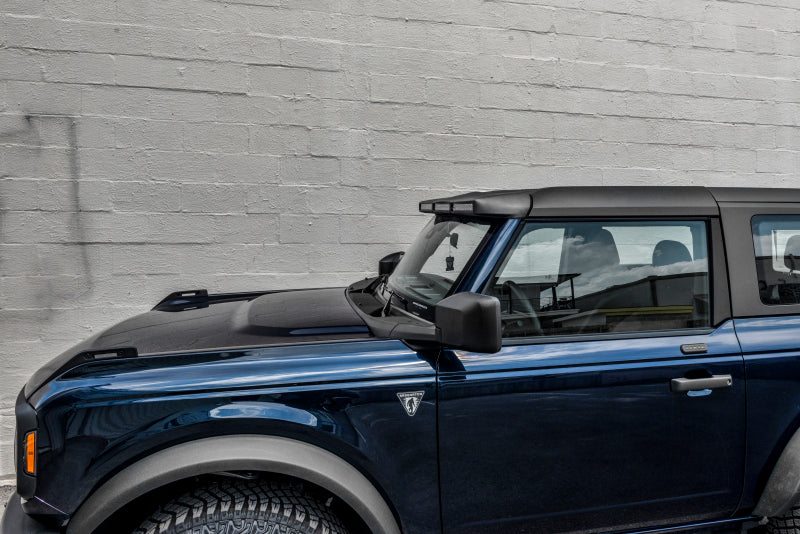

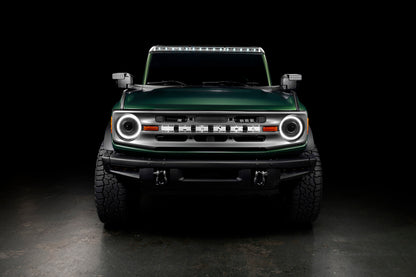

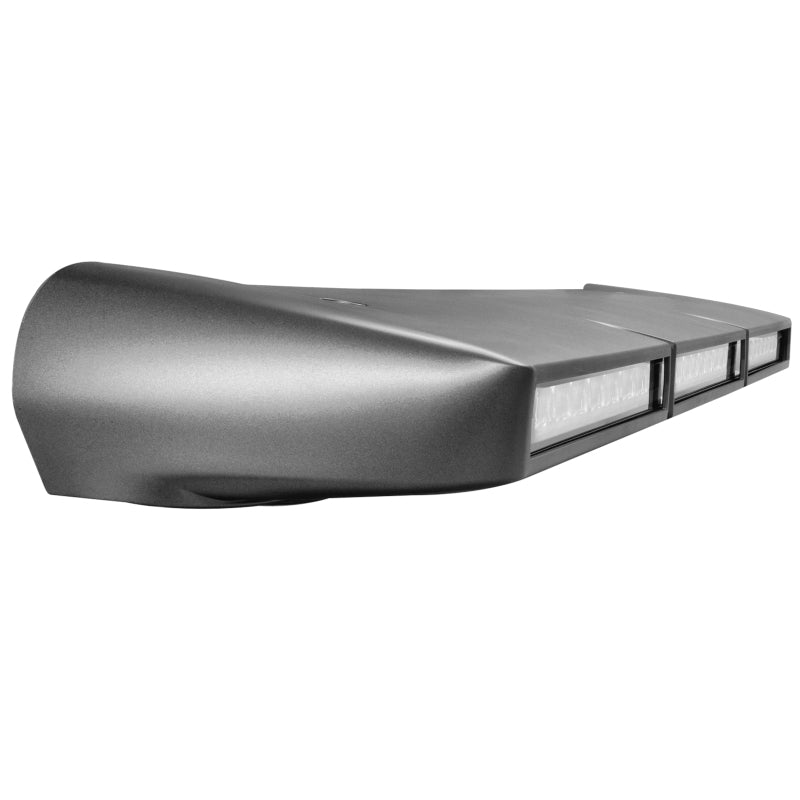

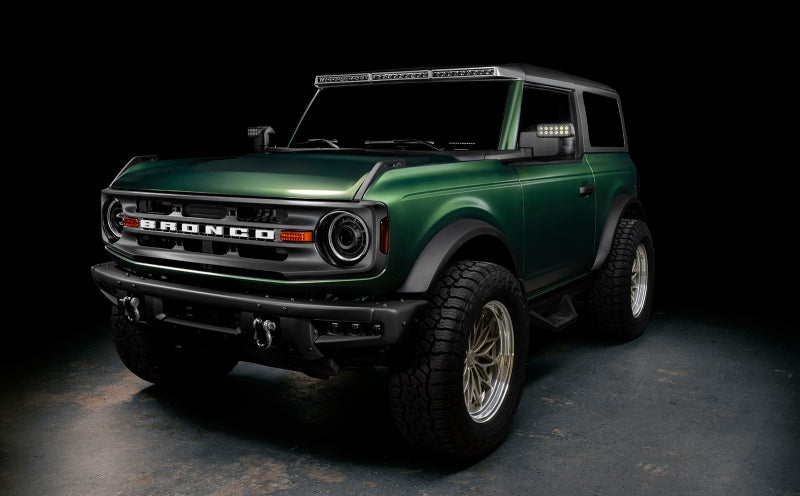

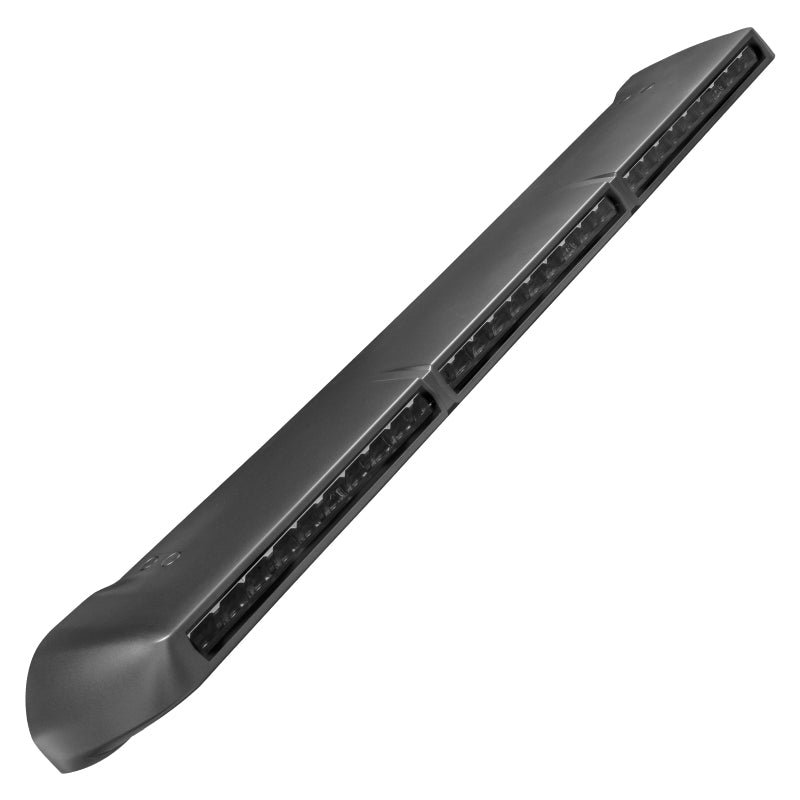

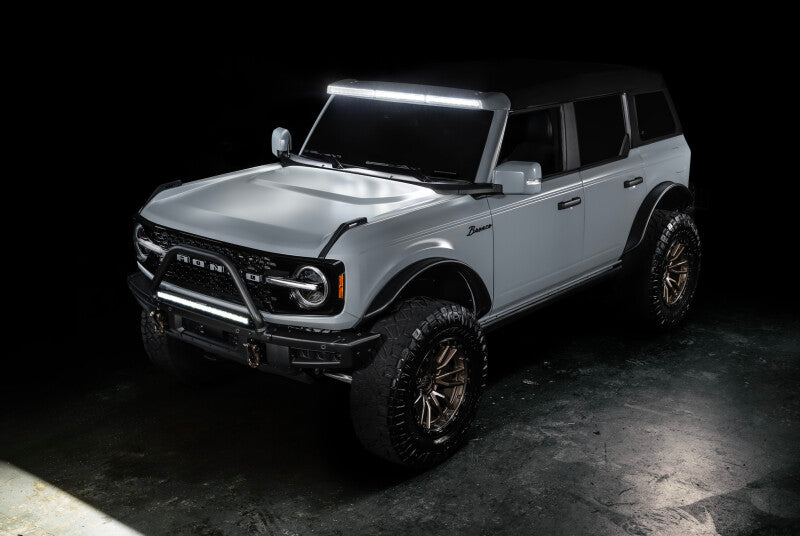

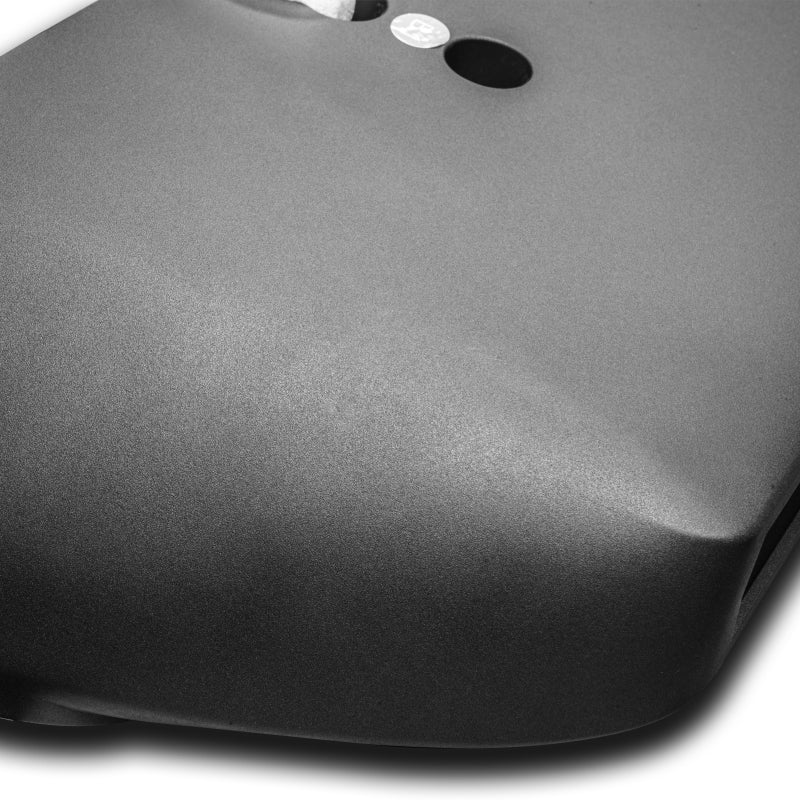

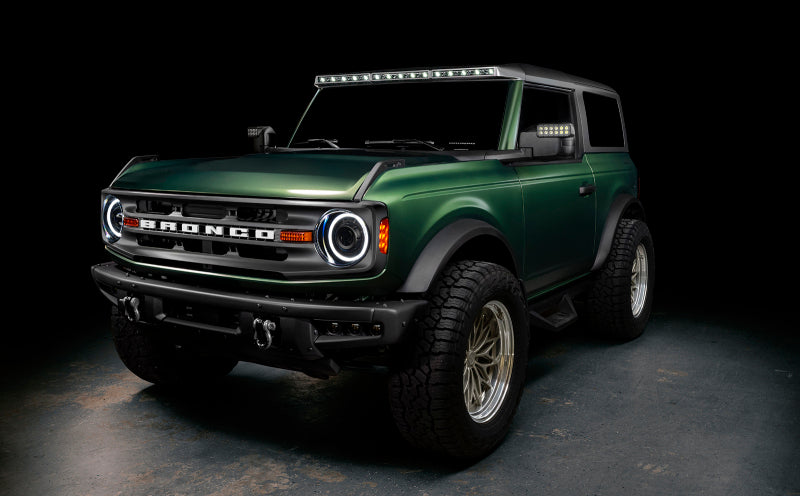

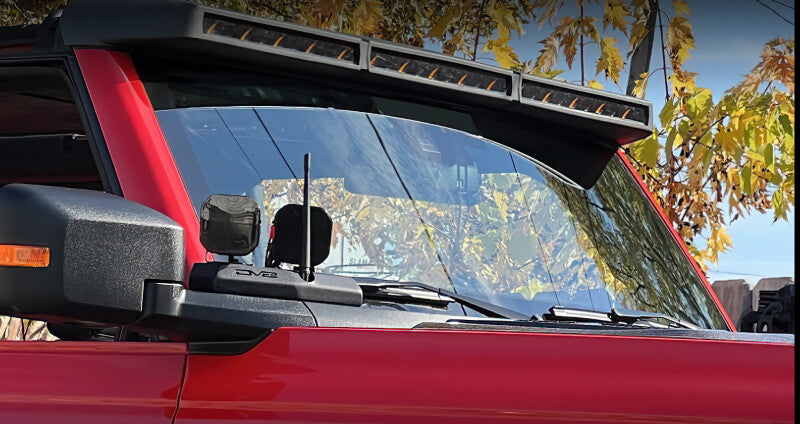

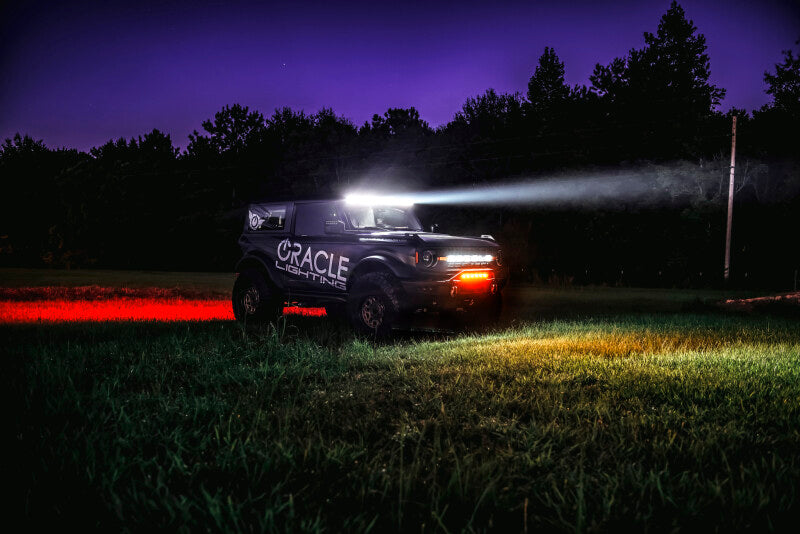

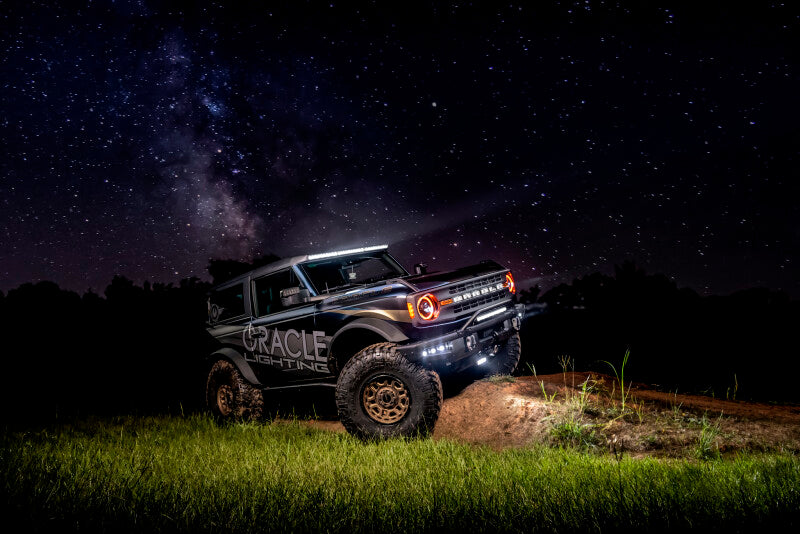

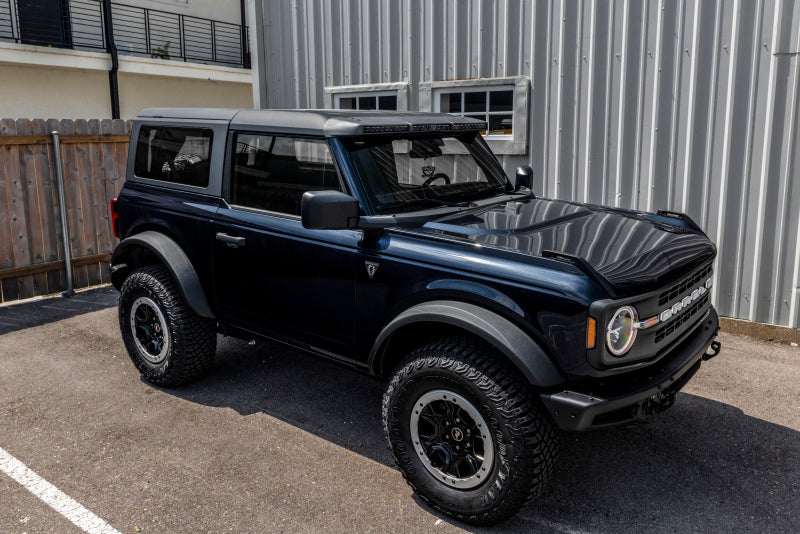

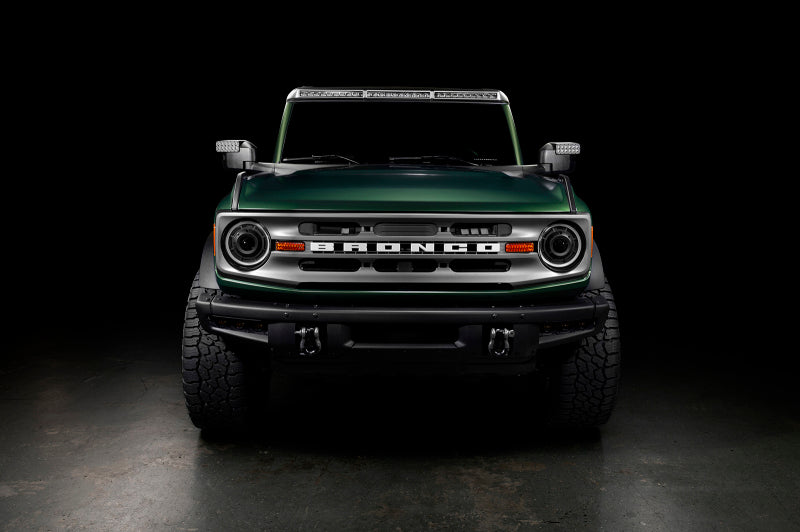

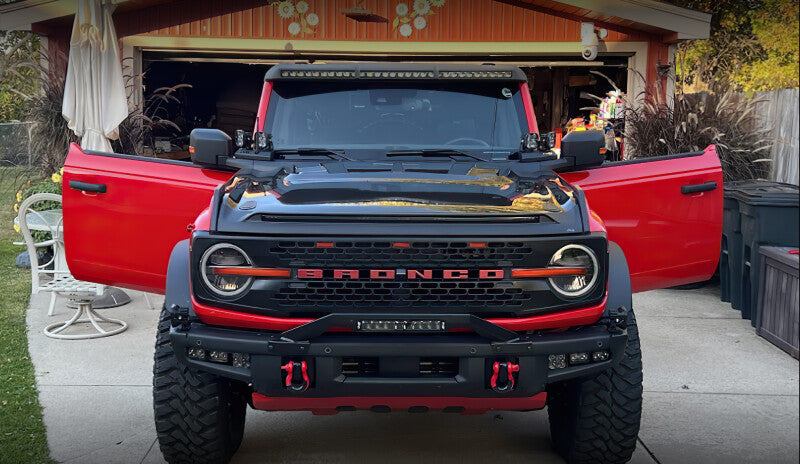

is easy using the factory hardware and only needing the tools included in your glovebox. The ORACLE Light Bar System mounts to your late model Bronco using the factory accessory mounting points and factory hardware for an easy, DIY installation experience! In addition to the color options offered the housing can also be painted to match the color your truck came with from the factory. We recommend using a professional painter to properly prep, prime, and color match paint the housing. The Ford Bronco Integrated LED Light Bar utilizes reflector facing LED technology, elevating it above basic and more common light bars. This reflector system is designed to provide optimized LED light output from the 30 individual 8W LED emitters creating at total of 18,000 raw lumens and a projection distance of over 600 meters. This system also features selectable Amber or White clearance lights. You can select to connect these lights to an Aux Switch, Parking Lights, DRL, or simply leave them disconnected if you prefer not to use the additional clearance light feature on your Bronco.
Installation Instructions- Included: (1) Integrated Windshield Roof LED Light Bar System for 2021+ Ford Bronco (4) Accessory Bolt Covers (2) 15" Wiper Blades for Clearance (6) Steel Truss Plates and Installation Hardware
- If you do not have Aux Switches, we recommend adding our wiring harness PN 5897-504. If you do have Aux Switches, we recommend adding our wiring harness PN 5899-504.
- DIY Install- No Fabrication/ Modification Required
- Under/Over Voltage and Reverse Polarity Protection
- Advanced Optic Design for Optimal Visibility

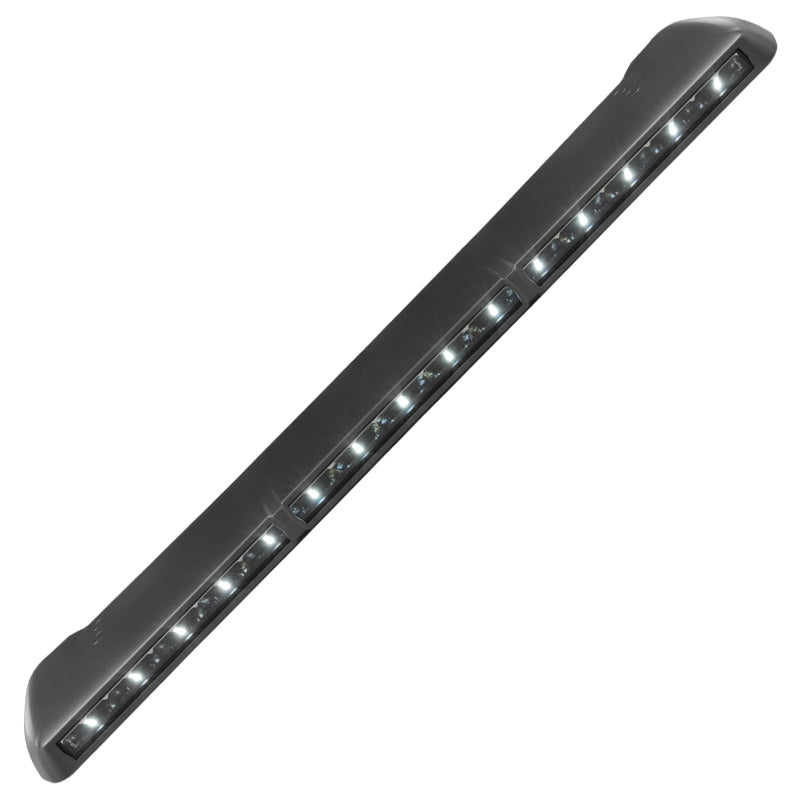

- High-Powered Lighting 30x 8W LED Main Light

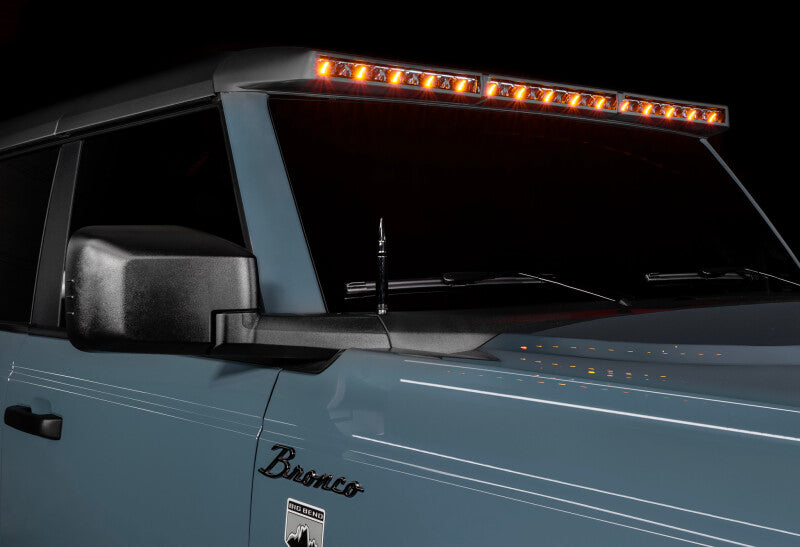

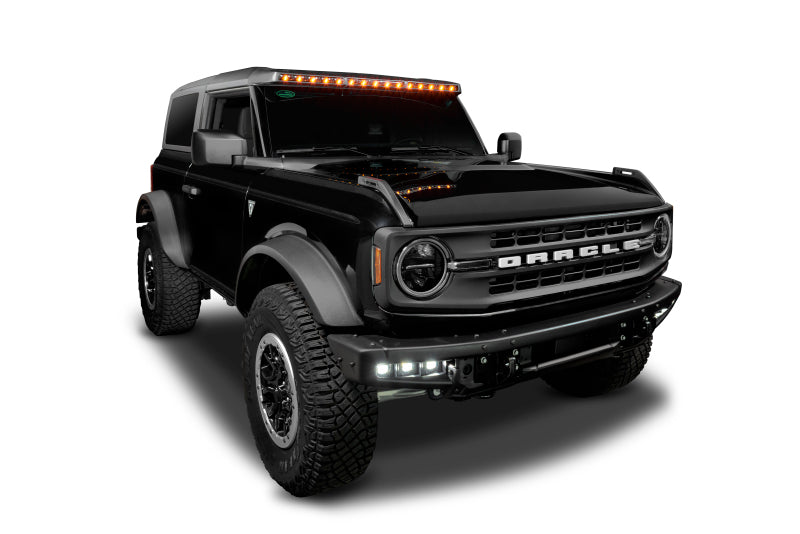

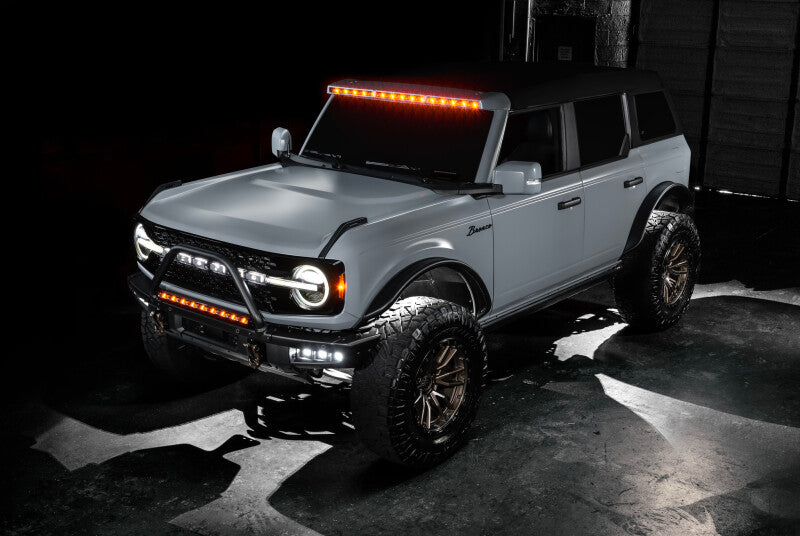

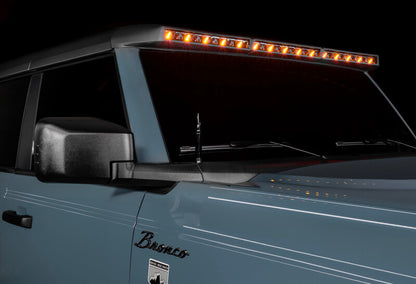

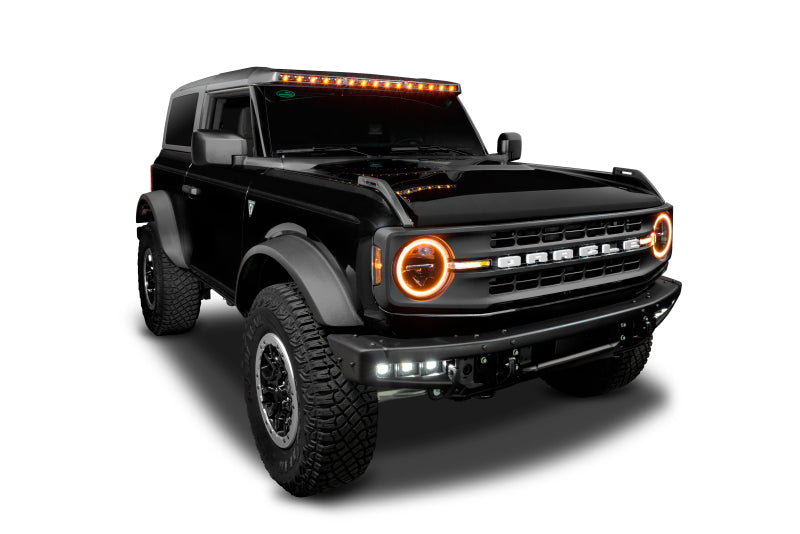

- Selectable Amber or White Clearance Lights

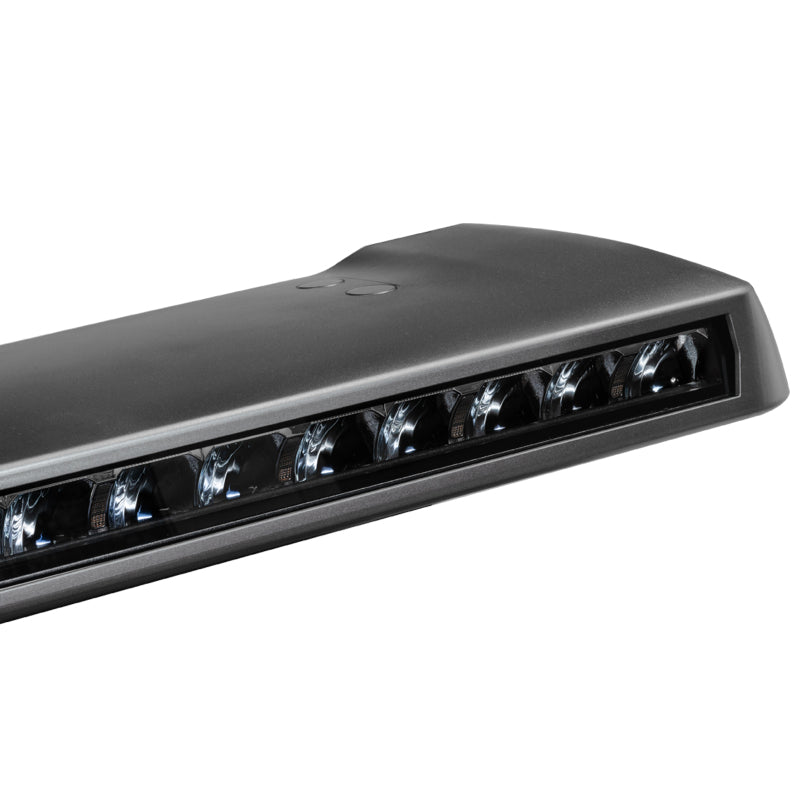

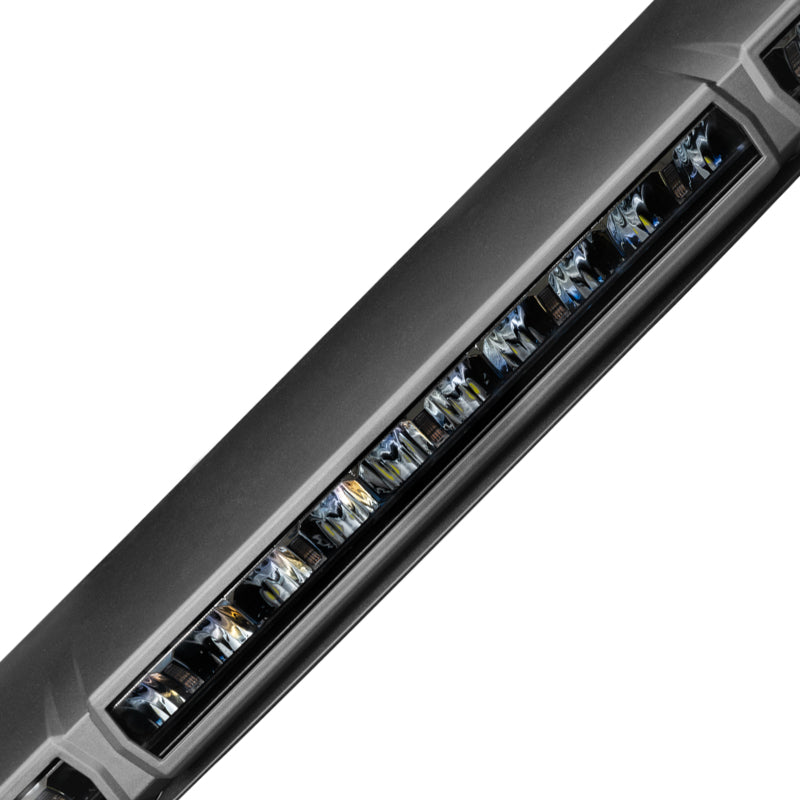

- Precision LED Reflector-Facing Technology
- Effective Lumen Light Output: 14,200LM

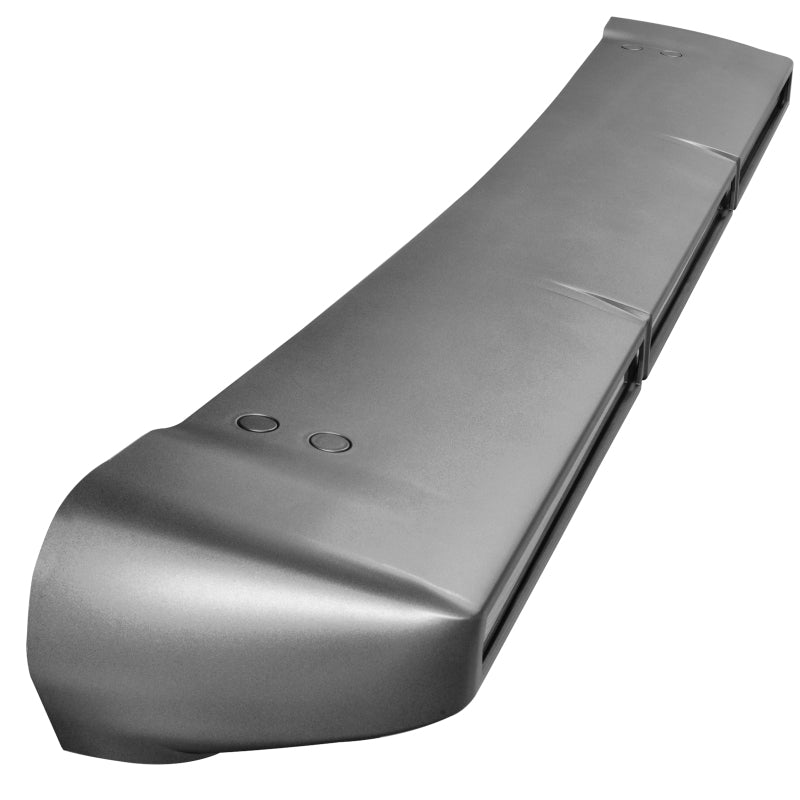

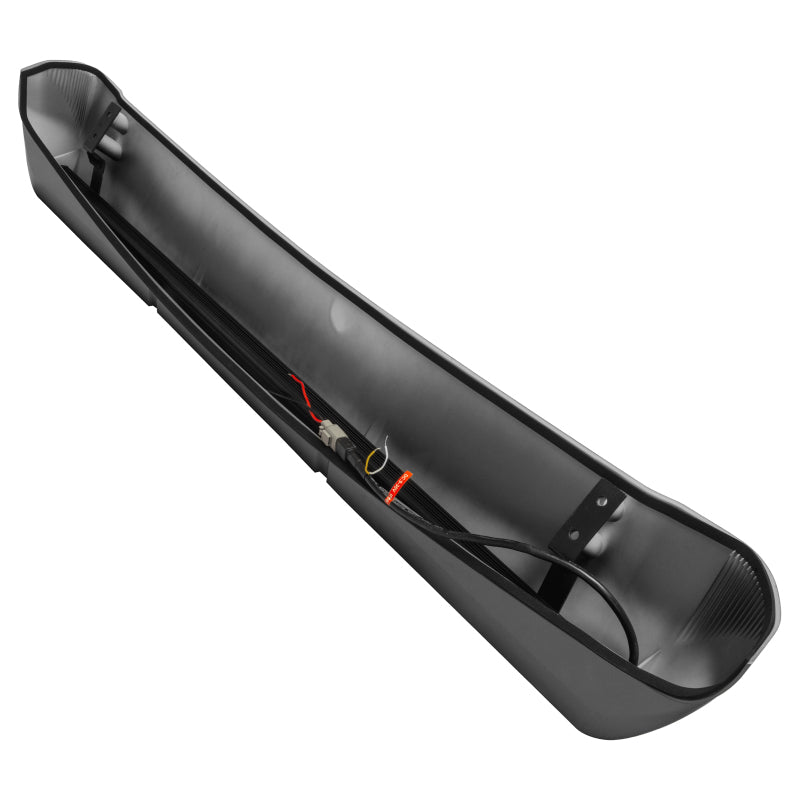

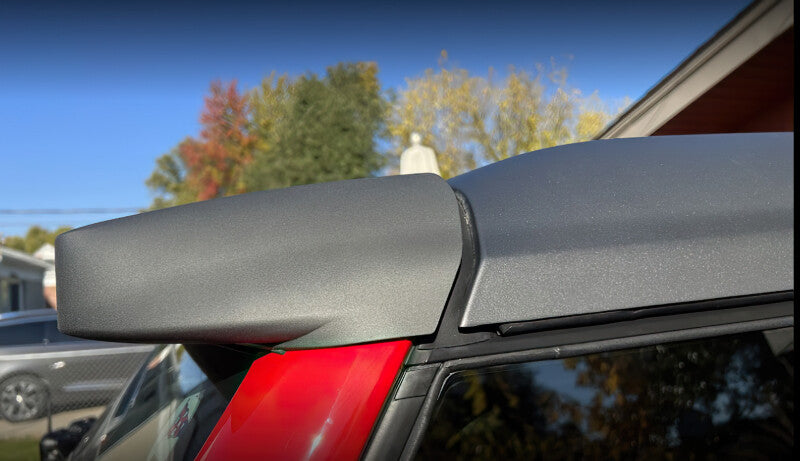

- Aerodynamic Integrated Housing Design

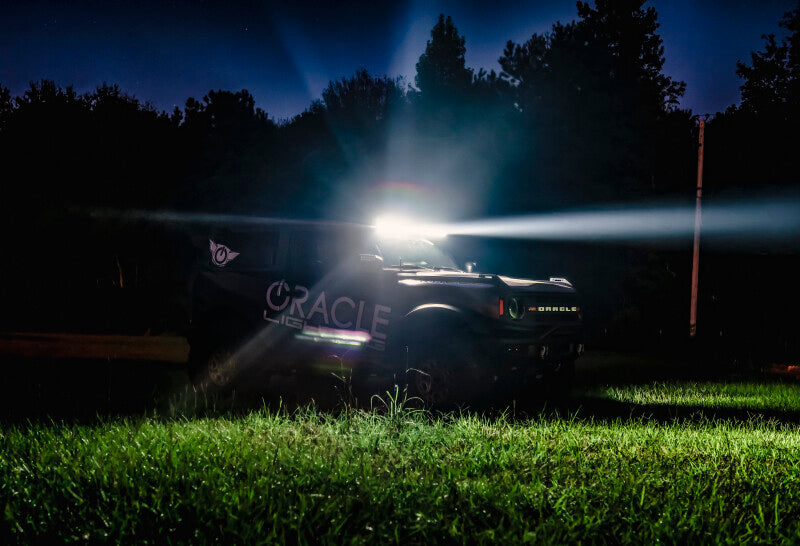

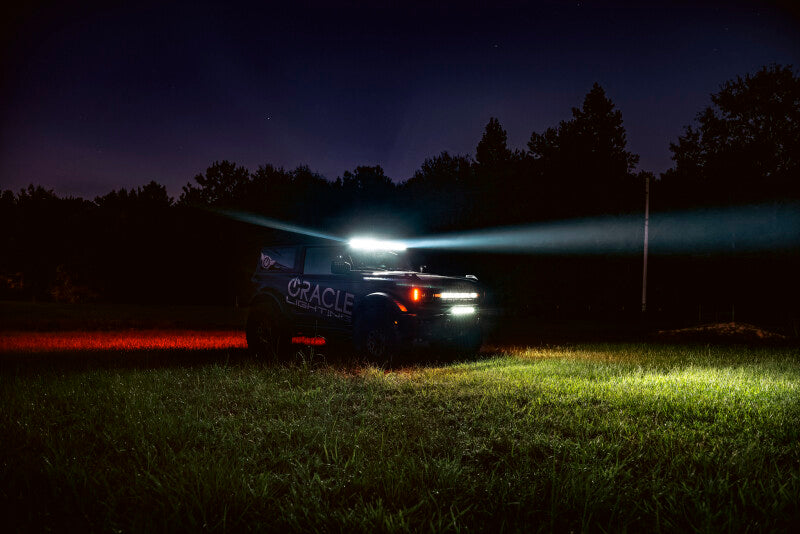

- Max Projection Distance: 1Lux@648M
- Designed and Engineered in the USA
- Innovative Patent-Pending Design
- Raw Lumen Light Output: 18,000LM
- Color Temperature: 5500K-6000K

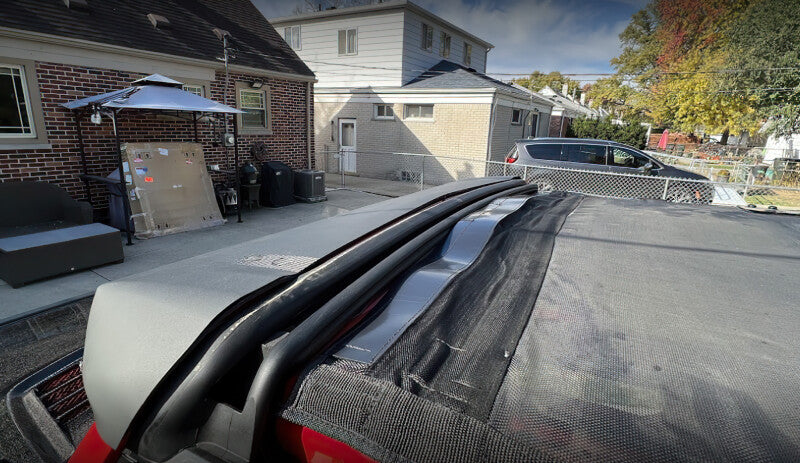

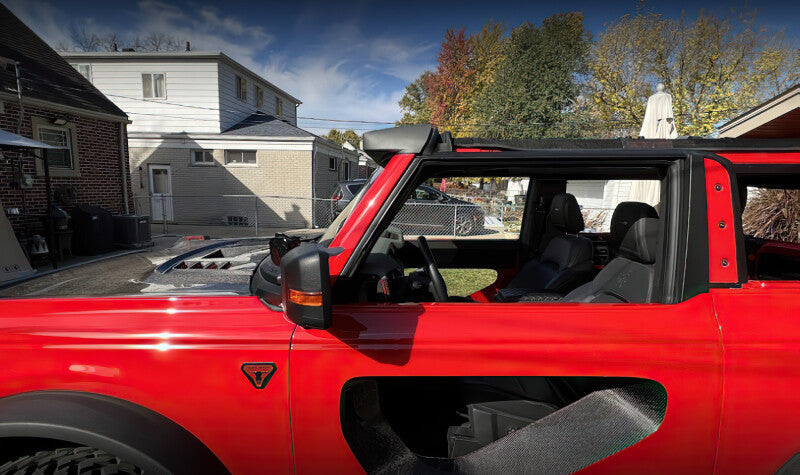

- Mounts using Factory Hardware
- Electronic Thermal Management
- Beam Angle: 40° Driving Beam
- Total Amp Draw: 14A @12V DC
- LED Lifespan 50,000+ Hours
- Peak Intensity: 420,000CD
- Total Wattage: 240 Watts
- 1 Year Warranty
