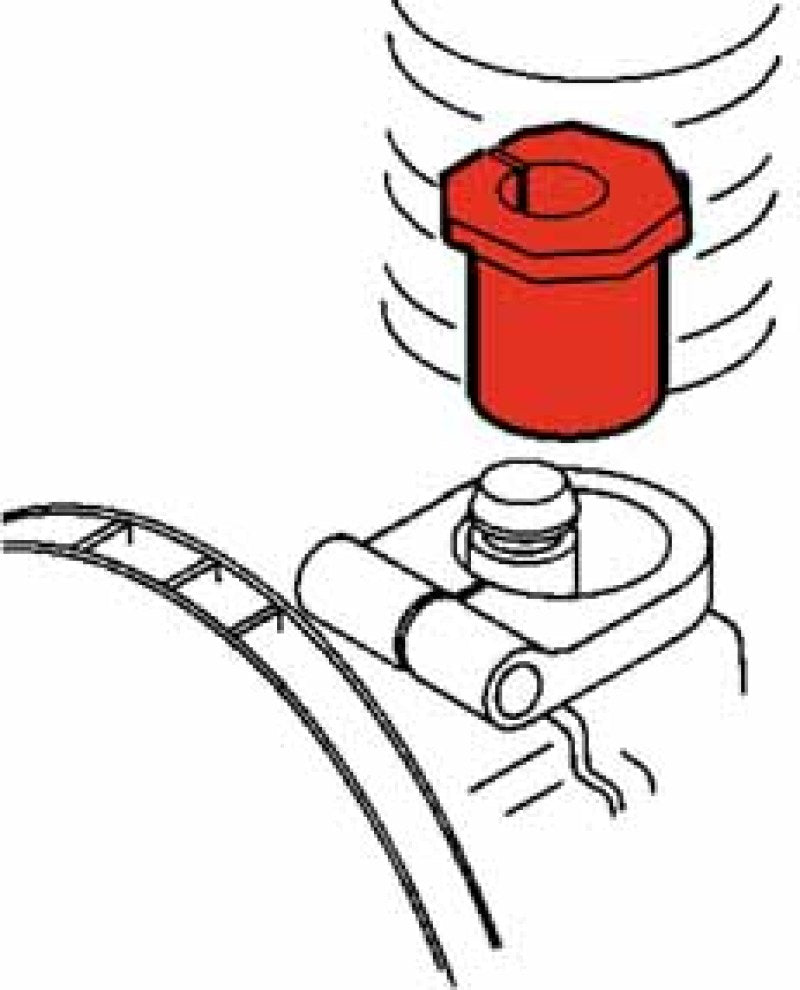

These popular sleeves are widely used to adjust caster and/ or camber on many Ford and Mazda RWD & 4WD trucks. To install, simply loosen and remove upper ball joint pinch bolt. Remove top snap ring if one is present. Use 77880 or 88830 sleeve puller to remove the existing sleeve. To split camber and caster adjustment, rotate sleeve 45deg. Save time during alignment, use 23199 zero degree sleeve to determine initial readings, then install correct sleeve. Note: Sleeves adjust to a smaller degree on Ford andMazda 4WD light trucks/SUVS. California Residents WARNING
Installation Instructions- Easily change caster / camber or both at the same time
- Front Adjustment Range RWD: Camber/Caster ±3.50°
- Front Adjustment Range 4WD: Camber/Caster ±2.75°
- Front Adjustment Range RWD: Camber/Caster ±3.50˚
- Front Adjustment Range 4WD: Camber/Caster ±2.75˚
- Clear Zinc coating for corrosion resistance
- Recommended Tools: 77880 - Sleeve Puller
- Required: 1 per wheel
