Ford's S550/S650 Mustang platform is one of the best handling Mustangs to date from the factory. Steeda, like always,
has found ways to continually push the boundaries of the S550/S650 IRS Mustang's suspension. From the factory, the OE
components are designed without any camber adjustment for alignment purposes. The factory strut mounts also utilize
a bushing style mount resulting in excessive bending stress on your dampers, steering system bind, and may even
cause pre-mature failure.

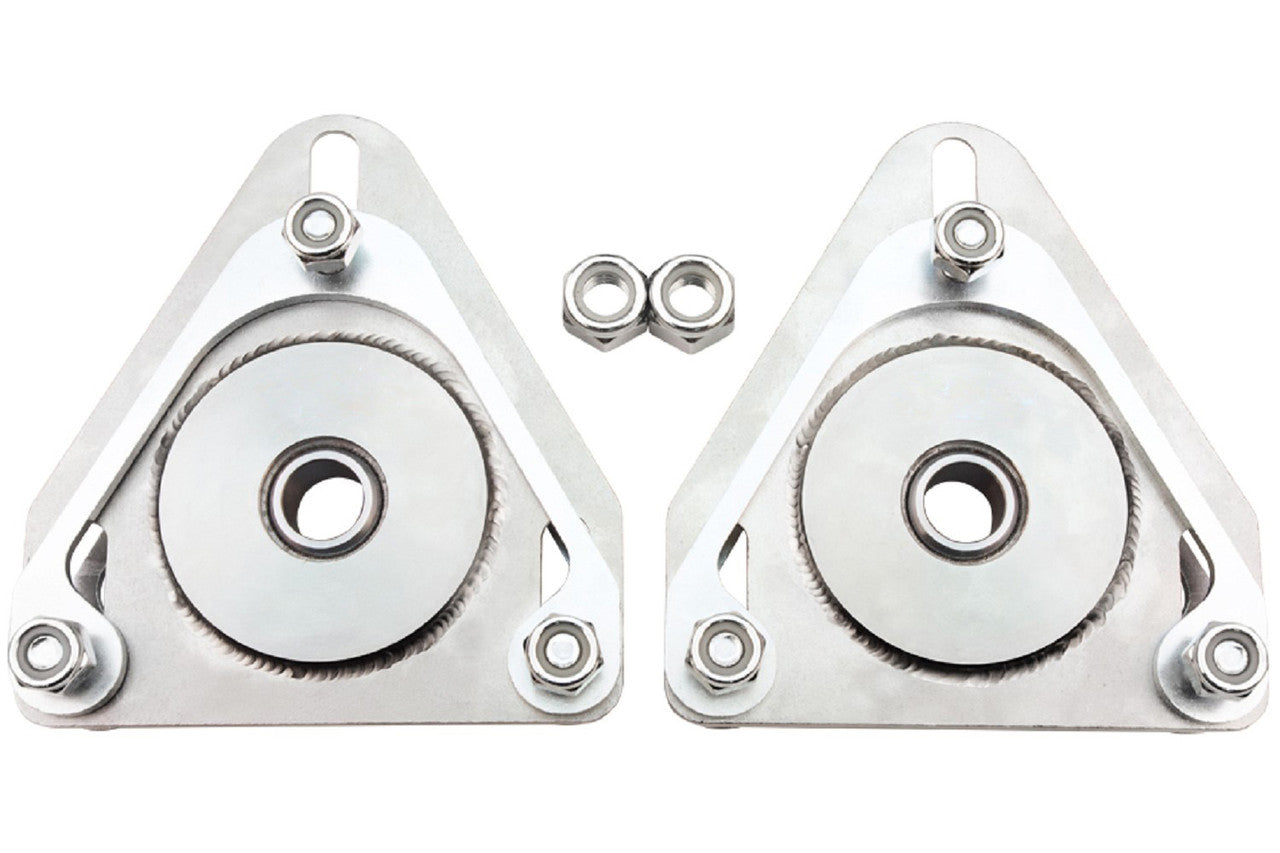

Our Steeda Mustang Camber Plates for Mustang GT, GT350, GT350R, Dark Horse, EcoBoost, and V6 are great for both street and
track use. Our camber plates come into play especially when lowering your vehicle. With the addition of our new
adjustable strut mounts on your lowered 'Stang you will be able to correct excessive negative camber and increase
your front steering response. If you lowered your daily driven S550/S650 Mustang, running the correct camber will
eliminate uneven tire wear.
Our camber plates are ideal for both daily driving or tracking your S550/S650. With the addition of these camber plates
you will be able to dial in precise front suspension camber for each front toe adjustments resulting in a more
balanced and predictable vehicle on the street or track. You will notice improved overall handling capabilities,
elimination of understeer and increase in your Mustang's turn-in response. In testing, we have seen maximum lateral
acceleration increase by. 11 G's post-installation of our Steeda Mustang Camber Plates. Maximum lateral
acceleration may vary depending on other variables such as tires or outside weather factors.
Please note: Our camber plates do not include caster adjustment. Ford has given the S550 Mustang 7 degrees of caster
right from the factory - typical racecar values of caster range from 6 - 8 degrees; any additional caster added to
this system will pull the front suspension out of its ideal camber range.
Note:
Our Steeda Mustang Camber Plates are compatible with KW Suspension V3
Coliover Kits. Steeda camber plates are not compatible with Bilstein B14 or B16 suspension kits due to
Bilstein's design.
Note:
Also fits the S550 GT500.
Product Benefits
- Ideal for any lowered street or track Mustang
- Reduce excessive uneven tire wear which can result from lowering your car
- Up to 3 degrees of camber adjustment, and up to -3.3 degrees if you open up your strut tower hole (Cutting
Tool, 555-8920)
- Most adjustment range on the market: adjust camber angle from -0.3 degrees to -2.8 degrees
- Highest quality, stainless steel, Teflon-lined bearings included
- Nickel-plated bearing housing, Tig-welded and CNC machined to exact tolerances
- Grade 10.9 hardware and Nylock nuts included
- Increased front grip, turn-in response and cornering performance
- Reduced understeer
- Increase overall cornering capability by. 11 G's
- No increase in NVH
- Specifically designed for the S550 chassis and front suspension system
- No permanent modifications required
- Steeda American-made quality, backed by a limited lifetime warranty
- Compatible with KW
Suspension V3 Coilover Kits and Performance Pack shocks
- Race-proven performance
