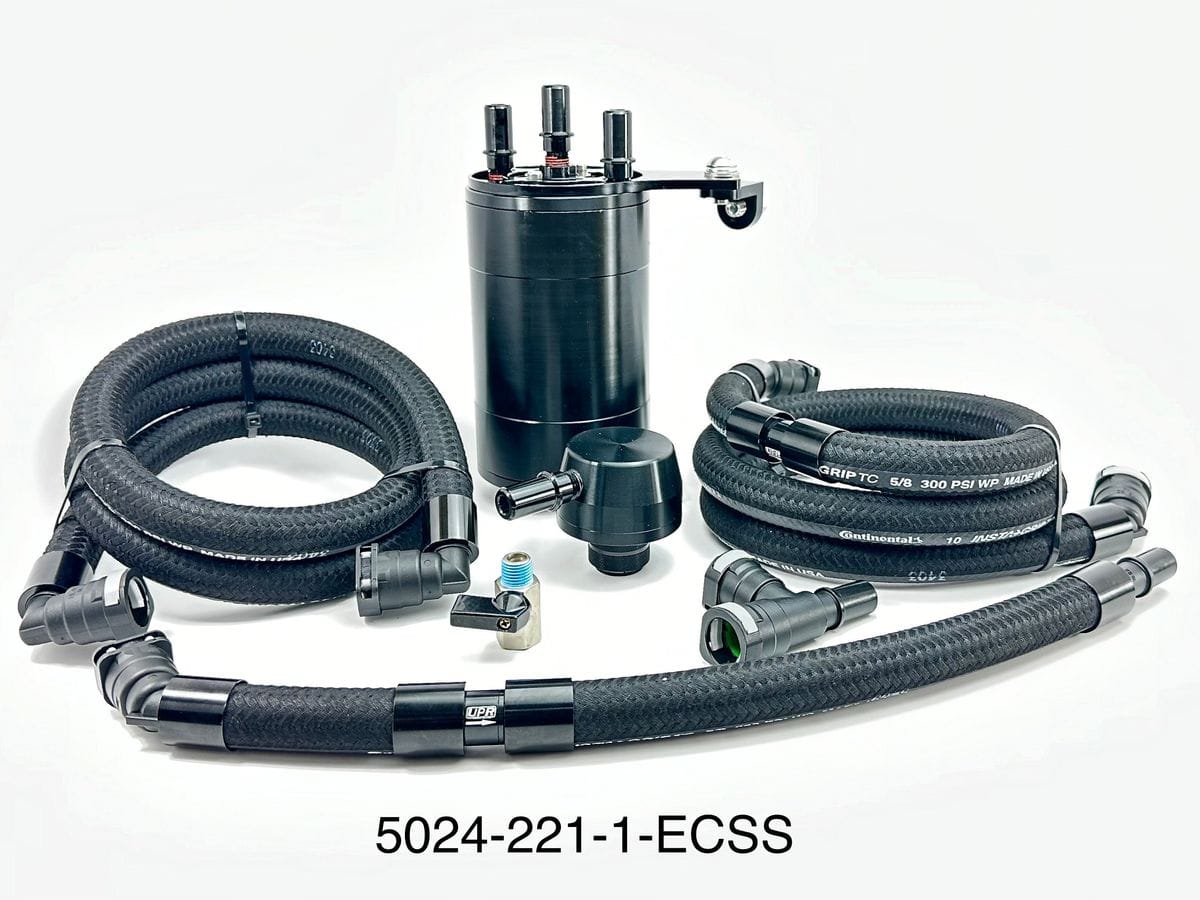

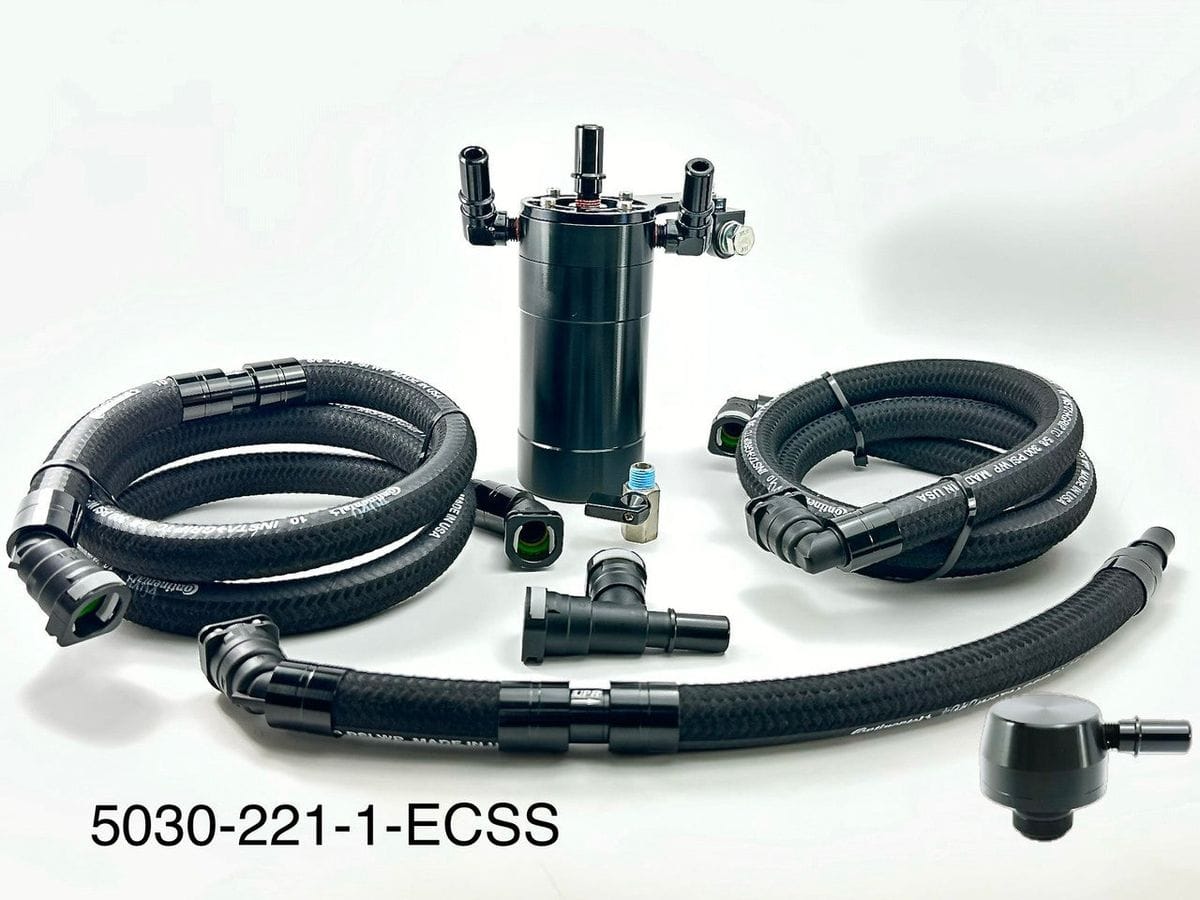

Plug n Play™ Dual Valve Oil Catch Can with ECSS (fits 15-20 F150 Ecoboost 2.7L & 3.5L Incl Raptor) UPR

This UPR Pro Series catch can kit is shipped ready to install even if no upgrades are selected. Upgrades are available to allow you to tailor the kit to fit your needs.

Optional Parts:

UPR Billet One-Way Valve Cover Breather:
These are Valve Cover Breathers with a one-way valve inside of it. These are designed to allow excess/positive crankcase pressure to exit through the breather when in boost. Then it closes to return to vacuum while driving to prevent un-metered air from entering to maintain perfect drivability. These are also ideal for vehicles in very cold or freezing weather as it allows crankcase pressure to escape until condensation or frozen condensation in the PCV hoses melts or thaws. This is a must to ensure maximum engine seal life.

UPR Billet Pro Series Check Valves:
These are larger higher flowing check valves than the standard check valve. It will increase the vacuum through the catch can and deliver better crankcase evacuation. The improved crankcase evacuation translates to increased MPG and more responsive low speed drivability. The arrow printed on the check valve will always need to face away from the catch can. There is no down side to having a check valve in a Naturally Aspirated (NA) application, and a check valve in required in boosted applications. The larger, higher flowing Pro Series Check Valve also has a hex nut on the body so you can disassemble it for inspection and cleaning.

UPR Adjustable Billet PCV Fitting:
The adjustable Billet PCV fitting includes 4 different size jets. It eliminates the failure prone factory PCV and still allows for the needed restriction. Jet sizes and application basics for Adjustable version are explained below.
» .100 Jet size is slightly more restrictive than the factory PCV fitting to allow you to restrict the PCV for vehicles ingesting too much oil through the PCV and wanting to reduce oil consumption.
» .125 Jet size is slightly less restrictive than the factory PCV fitting to allow you to adjust the pcv to increase flow a bit more than factory for vehicles that only need minor adjustments to eliminate vapor locking in the PCV system.
» .150 Jet size is even less restrictive for the boosted vehicles that tow and are driven harder to increase flow more than factory for vehicles that only need more adjustment to eliminate vapor locking in the PCV system.
» .175 Jet size is the least restrictive compared to the factory PCV fitting and allows for the largest adjustment of the jets for modified vehicles that generate a lot of blow-by / back pressure to eliminate vapor locking / flooding the clean side of the PCV system with oil.

SS Magnetic Drain Plug:
The Stainless Steel magnetic drain plug would replace the drain plug on the bottom of the catch can with an allen head plug that has a magnet embedded into it. It will attract any ferrous metal material to it so the user can inspect it. If you select this option you can not also use the Drain Line kit below.

Drain Line Kit:
The drain line kit includes a drain valve, hose and fittings needed to install the drain valve. It allows the user to relocate the drain somewhere easier to access like the wheel well opening or bumper area. If you select this option you can not also use the Magnetic Drain Plug.

**Choose either the stainless steel magnetic drain plug or the UPR drain line kit, you would not need both**

Replacement O-Rings:
Spare O-rings for the catch can cup. If the O-ring is lost, torn or if it's just time to replace it due to wear it's a good idea to have a couple of spares in the glove box. 5030 is the main dirty side catch can or 5024 if you select the Mega can and 5043 is the clean side separator.

Product Features:

Includes:

Fits These Vehicles:

Made in the USA!
