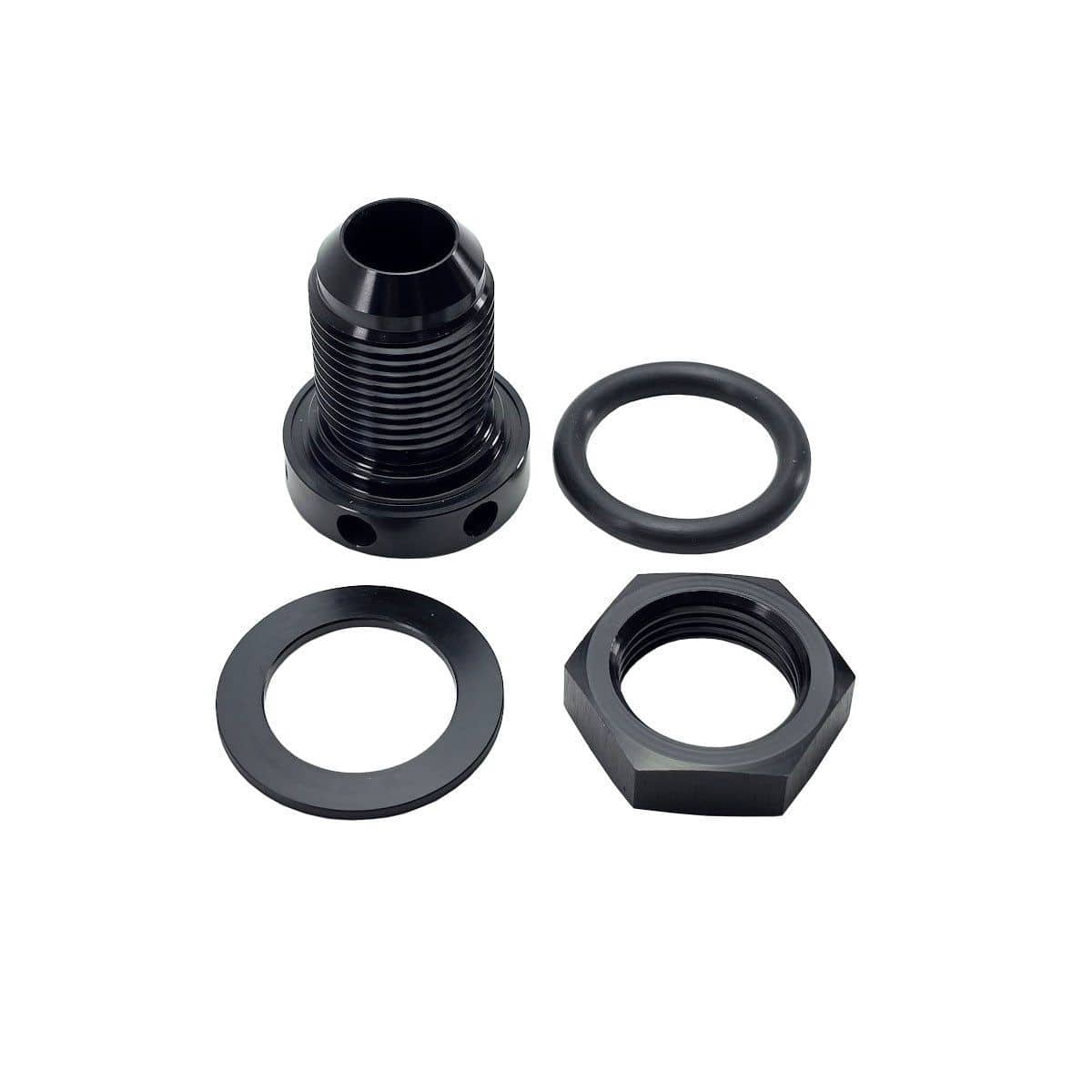

![Vented Valve Cover Fitting exploded view with Black Anodized Finish [5045-31]](http://makperformance.com/cdn/shop/files/5045-31b__83038.1729710778.1280.1280.jpg?v=1778000810&width=1946)
![Vented Valve Cover Fitting exploded view with Black Anodized Finish [5045-31]](http://makperformance.com/cdn/shop/files/5045-31b__83038.1729710778.1280.1280.jpg?v=1778000810&width=1445)
UPR Billet Aluminum Valve Cover Vented AN Breather Fitting is a simple Bolt in solution for adding an AN fitting to your valve cover for a catch can or breather system. No welding required. The low profile vent sits .493" inside of the valve cover for maximum valve train clearance and use a Buna O-Ring to seal and provide oil resistance. Our fitting also includes a delrin washer to protect your valve cover from galling when you tighten the retaining nut on the top of the valve cover. This fitting can be used for catch cans, breathers, vacuum pumps and crank case ventilation systems.
Requires using existing hole or drilling a 1-1/16" hole in your Valve Cover. No welding required.
Product Features:
» 12an Male Thread
» 6061 Billet Aluminum
» Requires 1-1/16" Hole
» Baffle Diameter 1.50"
» Six High Flow .250" Breather Holes
» Buna O-ring for Sealing and Oil Resistance
» Delrin Washer to Protect Top of Valve Cover
» .493" Clearance required on inside of Valve Cover
» Available in Satin Machined or Black Anodized Finish - Select Above
Fits:
Universal fitting can be used on any vehicle.
